MMF881A315-0001

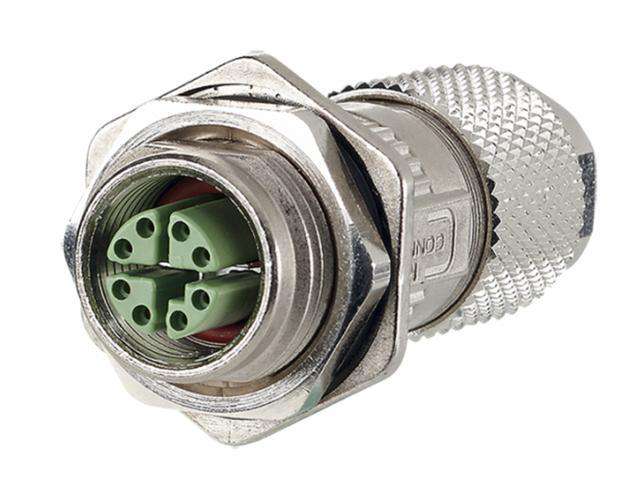

Circular Connector M12 X COD Cable Female With Jam Nut for Panel Mounting. 8 POL IDT Connection 9mm Cable Entry Shieldable
Overview
Features
- 8-pole M12 jack for field assembly Cat.6A
- Per IEC/PAS 61076-2-109 with flange
- Suitable for 10 GBit as per IEEE 802.3an
- AWG 26/1 to 22/1, AWG 26/7 to 22/7 can be connected
- Solid copper wire diameter 0.4 to 0.64 mm
- Stranded copper wire diameter 0.48 to 0.76 mm
- Wire diameter with isolation up to 1.6 mm
- Overall cable diameter from 5.0 to 9.7 mm
- Jack consists of only two parts
- Easy assembly without special tools
- Industry-compatible zinc die-cast housing
Specification
$17.20
Original: $57.35
-70%MMF881A315-0001—
$57.35
$17.20Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Circular Connector M12 X COD Cable Female With Jam Nut for Panel Mounting. 8 POL IDT Connection 9mm Cable Entry Shieldable
Overview
Features
- 8-pole M12 jack for field assembly Cat.6A
- Per IEC/PAS 61076-2-109 with flange
- Suitable for 10 GBit as per IEEE 802.3an
- AWG 26/1 to 22/1, AWG 26/7 to 22/7 can be connected
- Solid copper wire diameter 0.4 to 0.64 mm
- Stranded copper wire diameter 0.48 to 0.76 mm
- Wire diameter with isolation up to 1.6 mm
- Overall cable diameter from 5.0 to 9.7 mm
- Jack consists of only two parts
- Easy assembly without special tools
- Industry-compatible zinc die-cast housing
