MLS-GG 100/2,5 RED

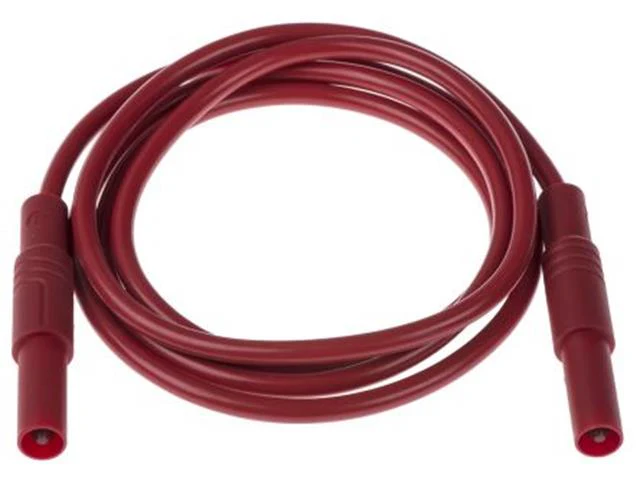

4mm PVC Safety Test Lead Straight SHRD Plug to Straight, SHRD Plug 2.5mm Square.
4mm PVC Safety Test Lead
Overview
Touch-proof measuring cable according to IEC 61010, both sides safety plug with 4mm diameter and straight outlet. Contact spring copper beryllium nickel-plated. Highly flexible, double insulated stranded wire, grip sleeve and cable are resistant to treading. Built-in color indicator to detect damage to the insulation.
Specifications
- Rated Voltage (1) : AC / DC 1000V
- Measurement Category According to IEC61010 : CAT III
- Rated current (1) (observe derating curve) : 32 A
- Material-pin : Nickel-Plated Brass
- Housing Material : PA
- Temperature Range According to IEC61010 (2) : -15°C to +70°C
- Flammability Class According to UL 94 (only Applies to Housing Base Material) : V-2
- Cable Length : 100 cm
- Wire Gauge : 2.5 mm²
- Cable Material : PVC
- Contact Resistance : 12 mOhm
- Standard : IEC 61010
Additional Information
| Device | Test Lead |
| Type | PVC | Safety |
$3.53
Original: $11.77
-70%MLS-GG 100/2,5 RED—
$11.77
$3.53Product Information
