ML30-101

Product image 1
1 / 3

ML30-101

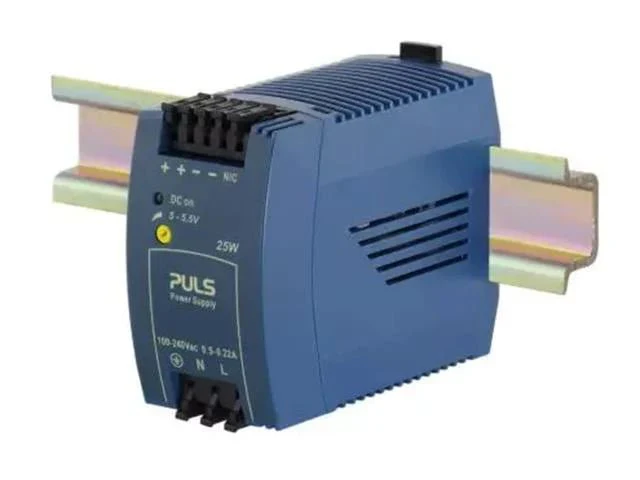

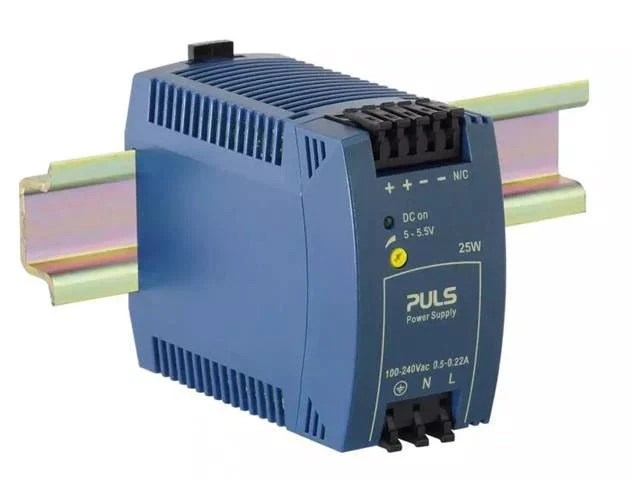

DIN Rail Plastic Case Switch Mode Power Supply Input: 100 ~ 240VAC/110 - 300VDC. Output 5VDC @ 5,5A( ML30.101) (DIN Rail Plastic 5V - 5,5A)

DIN Rail Plastic Case Switch Mode Power Supply

Feature

  • 100-240 V Wide-range input
  • Efficiency up to 80 %
  • NEC Class 2 Listed
  • Full output power between -10 and +60 °C
  • Quick-connect spring-clamp terminals
  • Adapter for Wall Mounting included

Specifications

Input data

AC Input voltage AC 100 - 240 V (-15 %/+10 %)
DC Input voltage DC 110 V - 300 V (-20 %/+25 %)
Power factor 0.44
Input inrush current limitation NTC
Input inrush current 17 A / 35 A
External input fuse recommendation B-10 A / C-6 A

Output data

Nominal voltage 5 Vdc
Adjustment range 5 - 5.5 V
Output current range 5 A
Output current 5.5 V
  5 A at 5 V
Output power 25 W
Derating 0.5 W/°C for >+60 °C
Ripple and noise voltage max. 50 mVpp

Overview

Dimensions (WxHxD) 45 mm x 75 mm x 91 mm
Weight per unit (excl. packaging) 240 g
Mounting method DIN rail
Connection method Spring clamps
Efficiency, typ. 80 %
Power losses, typ. 6.3 W
MTBF SN 29500 @ 40 °C (h) 1963000 h

Downloads

Additional Information

Device Power Supply
Type DIN Rail | Plastic Case | Switch Mode
$58.54
