MAJ MTD81
Digital Multimeter come with Holster & Tilt Stand
Digital Multimeter come with Holster & Tilt Stand
Overview

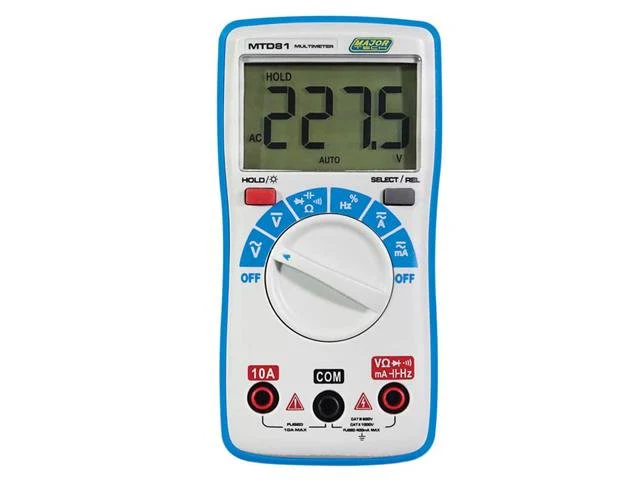

The MTD81 is a Compact Auto Ranging Multimeter with a 4000 count LCD backlit display. Measuring functions include AC and DC voltage, AC and DC current, Resistance, Frequency, Capacitance, continuity buzzer and diode test range. This meter meets the International Standard IEC 61010-1 CAT III 600V, and is ideally suited for everyday use by electricians, electronic technicians, students and DIY users. The meter has a built-in tilt stand for hands free convenience as well as low battery indication and auto power off.
Features
- 4000 count with backlit LCD display
- Measures DC voltage up to 1000V and AC voltage to 750V
- Measures AC and DC current up to 10A
- Capacitance to 200μF
- Frequency to 10MHz
- Duty Cycle
- Continuity buzzer and Diode Test
- REL mode and Data Hold
- Auto Power Off
Accessories:

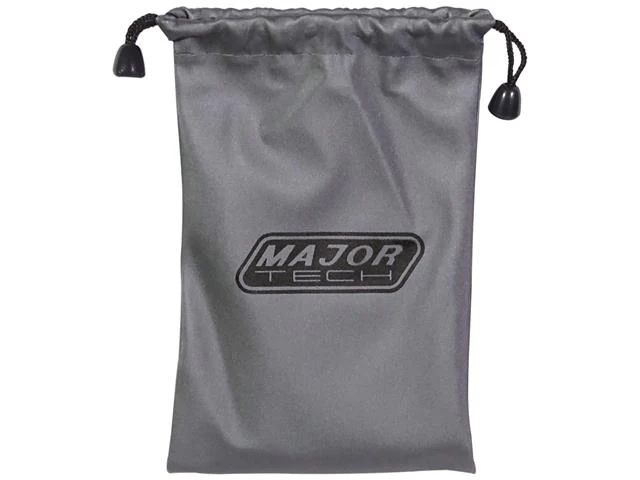

- Soft Carrying Case
- 2 x AAA Batteries
- Test Leads
- Instruction Manual
Specifications
| DC Voltage |
400.0mV – 1000V |
|---|---|
| AC Voltage |
400.0mV – 750V |
| DC Current |
40mA – 10A |
| AC Current |
40mA – 10A |
| Duty Cycle |
1% – 99% |
| Resistance |
400.0Ω – 40.00MΩ |
| Frequency |
99.99Hz – 10MHz |
| Capacitance |
4.000nF – 200.0µF |
| Continuity |
Yes |
| Build-In Buzzer |
Yes |
| Diode Test |
Yes |
| Battery Test |
Yes |
| ACV Bandwidth |
50Hz to 400Hz |
| Display |
LCD 4000 Count |
| Over-range indication |
“OL” is displayed |
| Data Hold |
Yes |
| Back Light |
Yes |
| Enclosure |
ABS |
| Batteries |
2 x AAA |
| Weight |
136g |
| Dimensions |
130 x 65 x 32mm |
| Safety Specs |
CAT III 600V |
Downloads
Additional Information
| Keywords | major tech, MTD81, digital multimeter, multimeter, DIY |
| Device | Multimeter |
| Type | Digital | Holster & Tilt Stand |
