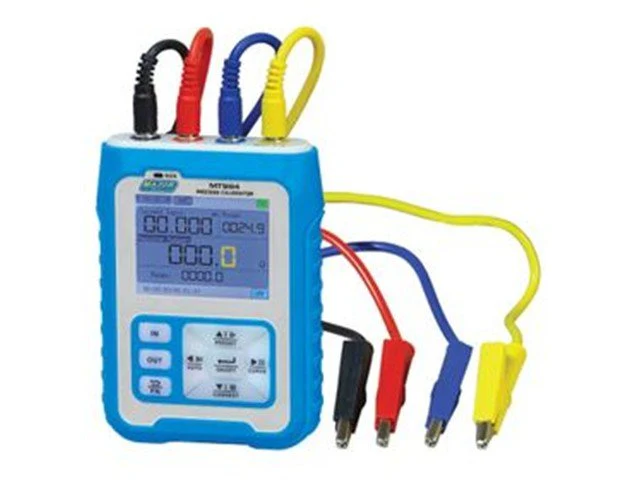

MAJ MT994
Multifunction Process Calibrator, Active/Passive Current O/P Range:0~24mA, Max Load:750Ω, Voltage O/P Range:0~24V, Max Current 30mA, PWM O/P (Frequency) Range: 0~9999Hz, 240x320 TFT Colour LCD Screen, Built-in lithium Rechargeable 3000mAh Battery
Multifunction Process Calibrator
Features
- Active current output: range: 0~24mA
- Maximum load: 750Ω
- Passive current output: range: 0-24 mA
- External power supply up to 30V
- Voltage output: range: 0-24 V
- Maximum current 30mA
- 24V voltage output
- Drive current: 24mA
- In addition, there is XMT Passive Current Signal, plus RTD simulation with Pt100, cu50 thermal resistance and 10 kinds of thermocouple
- Current input measurement: range: 0-24 mA Input impedance:100Ω
- Voltage input measurement: range: 0-30 V Input impedance: 2MΩ
- Real-time Curve: The changing trend of input and output signals can be displayed by drawing a curve, and the sampling time of the curve can be set.
- It can also automatically adjust the display curve within the range of maximum and minimum values in a certain period
- PWM output (frequency): Range: 0-9999Hz
- The high-definition 240*320 TFT colour LCD screen ensures readings are easily viewed
- Built-in lithium rechargeable 3000mAh battery power supply with standby time of around 26 hours; the using time varies, based on the usage (It can be 8-10 hours with 20mA continuous output)
Specifications
| Function | Range | Resolution | Accuracy |
| Current | 0 to 24mA | 0.001mA | ± (0.02% + 0.003) |
| Voltage | 0 to 24V | 0.001V | ± (0.02% + 0.003) |
| Passive | 0 to 24mA | 0.001mA | ± (0.02% + 0.003) |
| 24V Loop | 0 to 24mA | 0.01mA | ± (0.1% + 0.005) |
| Frequency Output | 0 to 9999Hz | 5 digits | ± (2%) |
| Milli-voltage | -10 to 100mV | 0.01mA | ± (0.03% + 0.03) |
| Thermocouple (TC-S) | 0 to 1760°C | 1°C | ± (0.2% + 1) |
| Thermocouple (TC-B) | 0 to 1810°C | 1°C | ± (0.5% + 1) |
| Thermocouple (TC-E) | 0 to 990°C | 1°C | ± (0.2% + 1) |
| Thermocouple (TC-K) | 0 to 1320°C | 1°C | ± (0.2% + 1) |
| Thermocouple (TC-R) | 0 to 1760°C | 1°C | ± (0.3% + 1) |
| Thermocouple (TC-J) | 0 to 1190°C | 1°C | ± (0.3% + 1) |
| Thermocouple (TC-T) | 0 to 390°C | 1°C | ± (0.2% + 1) |
| Thermocouple (TC-N) | 0 to 1290°C | 1°C | ± (0.2% + 1) |
| Thermocouple (WRe3/25) | 0 to 2320°C | 1°C | ± (0.2% + 1) |
| Thermocouple (WRe5/26) | 0 to 2320°C | 1°C | ± (0.2% + 1) |
| Resistance | 0 to 390Ω | 0.1Ω | ± (0.2% + 1) |
| PT100 | -200 to 650°C | 0.1°C | ± (0.5% + 1) |
| CU50 | -20 to 150°C | 0.1°C | ± (0.5% + 1) |
Downloads
Additional Information
| Device | Calibrator |
| Type | Multifunction | Process |
