MAJ MT710
600A AC True RMS Clamp Meter
600A AC True RMS Clamp Meter
Overview

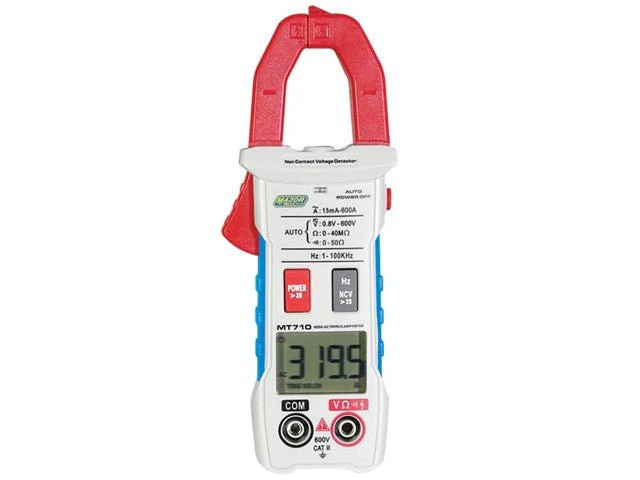

The MT710 is a CAT III 600V, 4000 count True RMS 600A AC digital clamp meter with indication on a large backlit LCD display, providing fast
sampling time with high accuracy. The Smart mode, “AUTO”, is a function that automatically identifies DC voltage, AC voltage, Resistance and
continuity and automatically displays the measurements. By pressing the NCV button continuously the LCD displays “EF” and will display “----“ when
voltage is detected and the buzzer sounds. The meter measures 600V AC/DC, frequency, resistance measurements, plus Inrush current and Peak
Voltage value. Other features include, Data hold function and a built-in flashlight for dimly lit areas. Housed in a modern compact housing ideal for
electricians, HVAC technicians and students studying electrical.
Features
- 4000 count backlit LCD display
- Ø25mm Cable Clamp size
- Smart Mode automatically identifies DCV, ACV, Resistance and continuity
- Measurement of DC voltage and AC voltage up to 600V
- INRUSH Current Measurements
- NCV – Non-Contact Voltage Detector
- Built-In Flashlight
- Continuity buzzer
- Peak Mode and Data Hold function
- Auto Power Off
Specifications
| Function | Range | Resolution | Accuracy |
| AC Current | 0.004A – 600A | 4mA | ±(2.5% + 8 Digits) |
| DC Voltage | 0.001V – 600V | 1mV | ±(0.5% + 3 Digits) |
| AC Voltage | 0.001V – 600V | 1mV | ±(1% + 3 Digits) |
| Resistance | 0.001K? – 40M? | 0.001k? | ±(0.5% + 3 Digits) |
| Frequency | 0.001Hz – 100kHz | 0.001Hz | ±(0.1% + 2 Digits) |
| True RMS Measurements | ACV, ACA | ||
| AC Bandwidth | 40Hz-1kHz | ||
| Digital Display | 4000 | ||
| Non-Contact Voltage (NCV) | Yes | ||
| Overrange Indication | Yes | ||
| Continuity | Yes | ||
| Jaw Size | 25mm | ||
| Peak Hold | Yes | ||
| Back Light | Yes | ||
| Enclosure | ABS Moulding | ||
| Low Battery Indication | Yes | ||
| Batteries | 2 x AAA | ||
| Weight | 172g | ||
| Dimensions | 172 x 64 x 32mm | ||
| Safety Specs | IEC61010-1 CAT IV 300V | ||
Downloads
Additional Information
| Device | Clamp Meter |
| Type | 600A AC | True RMS |
