MAJ MT694
Professional Infrared Thermometer with Dual Laser
Professional Infrared Thermometer
Overview

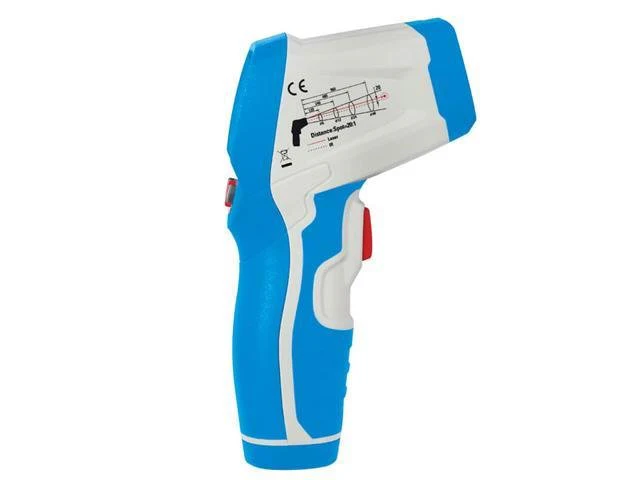

The MT694 is a 1000Ā°C Multipoint Laser Infrared Thermometer small and compact pistol grip type which can provide fast and accurate readings for most surface temperature measurements due to its sampling rate of 150 milliseconds. The distance to spot ratio is 20:1 and the temperature range is from -50Ā°C to 1000Ā°C. This meter features a multipoint laser which increases the target accuracy when the unit is at the optimum distance from the object being measured. Special features include adjustable emissivity from 0.1 to 1.0, external Type-K temperature measurements, response time 150mS, max hold, large backlit LCD display, High and Low alarm and a trigger lock for continuous use.
Features
- Spot Ratio 20:1
- Temperature -50ā°C to +1000ā°C
- Response time 150ms
- Adjustable emissivity from 0.10 to 1.0
- Circular laser sighting
- Selectable ā°C or ā°F
- Automatic Data Hold
- MIN, MAX, AVG and DIF temperature displays
- Set High and Low alarms
- Type-K input
- Automatic selection range and Display Resolution
- Backlit LCD display
- 2 meter drop tested
- IP54 Splash Proof & Dust Resistant
- Auto Power Off
Accessories:
- Carrying Case
- 2 x AAA Batteries
- Instruction Manual
- Type-K Probe
Application:
- Mechanical / Electrical Equipment
- Measuring temperature of patients in a hospital without touching them
- Checking heater or oven temperature for calibration and control
- Checking for hot spots in fire-fighting
- Monitoring materials in processes involving heating or cooling
Ā
Specifications
| Infrared temperature range |
-50Ā°C to 1000Ā°C |
|---|---|
| Infrared temp resolution |
0.1Ā°C |
| Infrared temp accuracy |
Ā±(1% Ā± 1Ā°C) |
| Response time |
150ms |
| Spectral Response |
8 to 14um |
| Display |
LCD Display |
| Spot Ration |
20 : 1 |
| Adjustable Emissivity |
0.10 to 1.0 |
| Laser Targeting |
Multipoint |
| Type-K Temperature Range |
-50Ā°C ā 1350Ā°C |
| Type-K Temp Resolution |
0.1Ā°C |
| Type-K Temp Accuracy |
Ā±(0.5% Ā± 1.5Ā°C) |
| Min/Max/Diff/Ave |
Max |
| Hi/Low Alarm |
Yes |
| Back Light |
Yes |
| Enclosure |
Moulded |
| Low battery indication |
Yes |
| Power Supply |
2 x 1.5V AA Batteries |
| Weight |
163g |
| Dimensions |
146 x 104 x 43mm |
Downloads
Additional Information
| Device | Thermometer |
| Type | Professional | Infrared |
