LS15-13B05SS

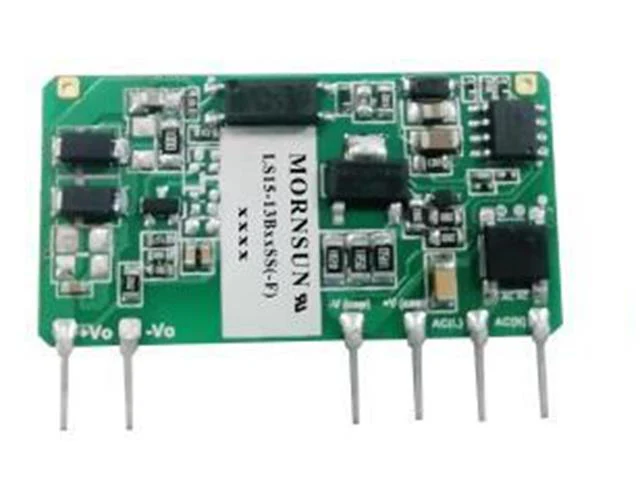

Open Frame Miniature Vertical PCB Switch Mode Power Supply Input: 85 ~ 305 VAC/100 - 430 VDC. Output 5VDC @ 2,8A
Vertical PCB Switch Mode Power Supply
Feature
- Universal 85-305VAC or 100-430VDC input voltage
- Accepts AC or DC input(dual-use of same terminal)
- Operating ambient temperature range: -40℃ to +85℃
- Small size, high power density
- Low power consumption, green power
- Output short circuit, over-current, over-voltage protection
- Regulated output, low ripple & noise
- Design to meet IEC/EN60335 standards
- IEC/EN/UL62368 safety approval
Downloads
Additional Information
| Device | Power Supply |
| Type | Vertical PCB | Switch Mode |
| Input Voltage | 85 ~ 305 VAC/100 - 430 VDC |
| Output | 5VDC @ 2,8A |
