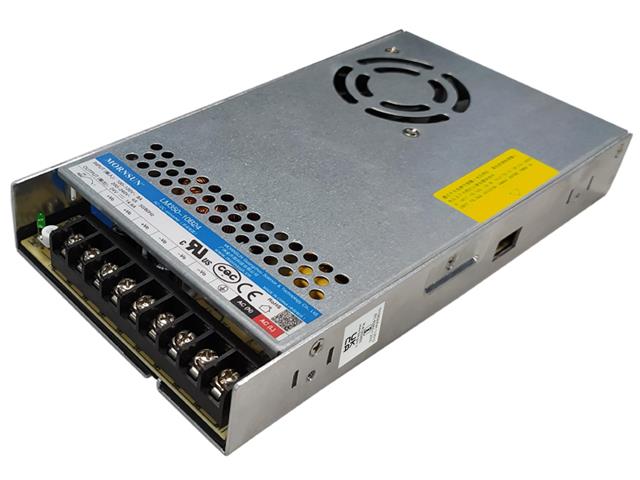

LM350-10B48
Metal Case Small Outline Switch Mode Power Supply Input: 180 ~ 264VAC (Switch)/240 - 370VDC. Output 48VDC @ 7,3A. Terminal Block Term. Built-in DC Fan (LRS-350-48)
Small Outline Switch Mode Power Supply
Overview
LM350-10Bxx series is one of Mornsun’s enclosed AC-DC switching power supply. It features selectable AC input and at the same time
accepts DC input voltage, cost-effective, low no load power consumption, high efficiency and high reliability. These power supply offer
excellent EMC performance and meet IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, EN60335, GB4943 standards and they are widely
used in areas of industrial, LED, street light control, electricity, security, telecommunications, smart home etc.
Feature
- Selectable AC input range: 90 - 132VAC/180 - 264VAC
- DC input range: 240 - 370VDC
- Ultra low standby power consumption < 0.75W @230VAC
- Operating ambient temperature range: - 30℃ to +70℃
- LED indicator for power on
- Output short circuit, over-current, over-voltage, over-temperature protection
- Built-in DC fan
- Operating up to 5000m altitude
Downloads
Additional Information
| Device | Power Supply |
| Type | Switch Mode | Metal Case |
| Size | 215.00 x 115.00 x 30.00m |
$41.10
LM350-10B48—
$41.10
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Metal Case Small Outline Switch Mode Power Supply Input: 180 ~ 264VAC (Switch)/240 - 370VDC. Output 48VDC @ 7,3A. Terminal Block Term. Built-in DC Fan (LRS-350-48)
Small Outline Switch Mode Power Supply
Overview
LM350-10Bxx series is one of Mornsun’s enclosed AC-DC switching power supply. It features selectable AC input and at the same time
accepts DC input voltage, cost-effective, low no load power consumption, high efficiency and high reliability. These power supply offer
excellent EMC performance and meet IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, EN60335, GB4943 standards and they are widely
used in areas of industrial, LED, street light control, electricity, security, telecommunications, smart home etc.
Feature
- Selectable AC input range: 90 - 132VAC/180 - 264VAC
- DC input range: 240 - 370VDC
- Ultra low standby power consumption < 0.75W @230VAC
- Operating ambient temperature range: - 30℃ to +70℃
- LED indicator for power on
- Output short circuit, over-current, over-voltage, over-temperature protection
- Built-in DC fan
- Operating up to 5000m altitude
Downloads
Additional Information
| Device | Power Supply |
| Type | Switch Mode | Metal Case |
| Size | 215.00 x 115.00 x 30.00m |
