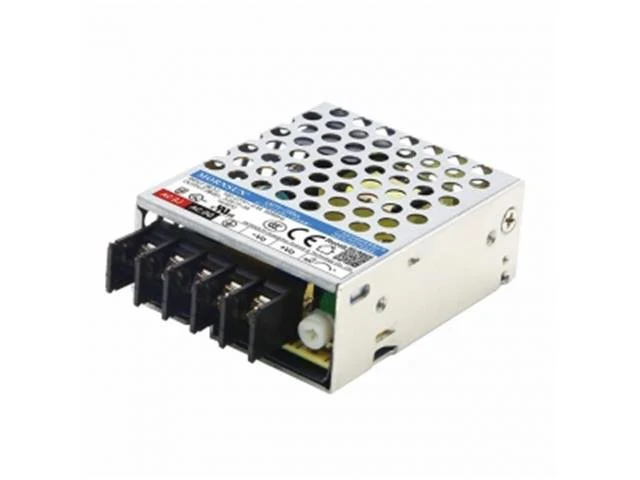

LM15-23B03
Metal Case Small Outline Switch Mode Power Supply Input: 85 ~ 305VAC/100 - 430VDC. Output 3,3VDC @ 3A. Terminal Block Term. 4KVAC Isolation
Small Outline Switch Mode Power Supply
Feature
- Universal 85 - 305VAC or 120 - 430VDCinput voltage
- Accepts AC or DC input (dual-use of sameterminal)
- Operating ambient temperature range: -30℃to+70℃
- Low standby power consumption, high efficiency
- High I/O isolation test voltage up to 4000VAC
- Low ripple & noise
- Output short circuit, over-current, over-voltageprotection
- OVC Ⅲ (designed to meet EN61558)
- Operating up to 5000m altitude
Downloads
Additional Information
| Device | Power Supply |
| Type | Small Outline | Switch Mode | RS-15-3,3 |
| Input Voltage | 85 ~ 305VAC/100 - 430VDC |
| Output | 3,3VDC @ 3A |
| Size | 65.00 x 55.00 x 25.00 mm |
