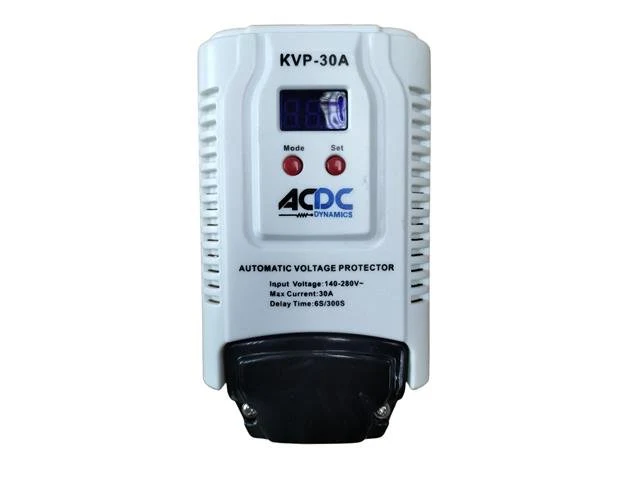

KVP-30A
Automatic Voltage Protector 30A, I/P Voltage:140-280vac, Delay Time:6s/300s, Surge/Spike Amps:6.5ka, Response Time Under Voltage:1s, High Voltage Disconnect (HVD):210-270VAC (Def:255VAC), High Voltage Reconnect:5-10V Below HVD, Reconnect Delay:6s-2m
Automatic Voltage Protector
Feature
- Wide regulated voltage range 140-280V
- Microprocessor controlled PCB board
- Adjustable parameters settings
- High speed response time <200ms
- Automatic recovery system without user’s intervention
- Full protection such as high/low voltage, delay output, overload, short circuit, surge, spike
Specifications
| Name | Power Guard Voltage Protector |
| Model | KVP-30A |
| Input Voltage | 140-280Vac±5Vac |
| Output Voltage | AC 220V/230V |
| Output Current | Max.30A |
| Output Frequency | 50/60Hz |
| Functinal Settings | |
| 1. Delay Time | 1s-300s selectable |
| 2. High Voltage | 230-280V selectable |
| 3. Low Voltage | 140-200V selectable |
| 4. Over Current | 2-30A selectable |
| Protection | Delay Output/Low Voltage/High Voltage/Overload/Short Circuit/Surge/Spike |
| Safety Standard | CE (LVD+EMC) |
| Unit Weight/N.W. | 0.2 kgs |
| Giftbox Size (mm) | 530*380*260 (20) |
Downloads
Additional Information
| Device | Votage Protector |
| Type | Automatic |
$10.15
Original: $33.83
-70%KVP-30A—
$33.83
$10.15Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Automatic Voltage Protector 30A, I/P Voltage:140-280vac, Delay Time:6s/300s, Surge/Spike Amps:6.5ka, Response Time Under Voltage:1s, High Voltage Disconnect (HVD):210-270VAC (Def:255VAC), High Voltage Reconnect:5-10V Below HVD, Reconnect Delay:6s-2m
Automatic Voltage Protector
Feature
- Wide regulated voltage range 140-280V
- Microprocessor controlled PCB board
- Adjustable parameters settings
- High speed response time <200ms
- Automatic recovery system without user’s intervention
- Full protection such as high/low voltage, delay output, overload, short circuit, surge, spike
Specifications
| Name | Power Guard Voltage Protector |
| Model | KVP-30A |
| Input Voltage | 140-280Vac±5Vac |
| Output Voltage | AC 220V/230V |
| Output Current | Max.30A |
| Output Frequency | 50/60Hz |
| Functinal Settings | |
| 1. Delay Time | 1s-300s selectable |
| 2. High Voltage | 230-280V selectable |
| 3. Low Voltage | 140-200V selectable |
| 4. Over Current | 2-30A selectable |
| Protection | Delay Output/Low Voltage/High Voltage/Overload/Short Circuit/Surge/Spike |
| Safety Standard | CE (LVD+EMC) |
| Unit Weight/N.W. | 0.2 kgs |
| Giftbox Size (mm) | 530*380*260 (20) |
