KTP08

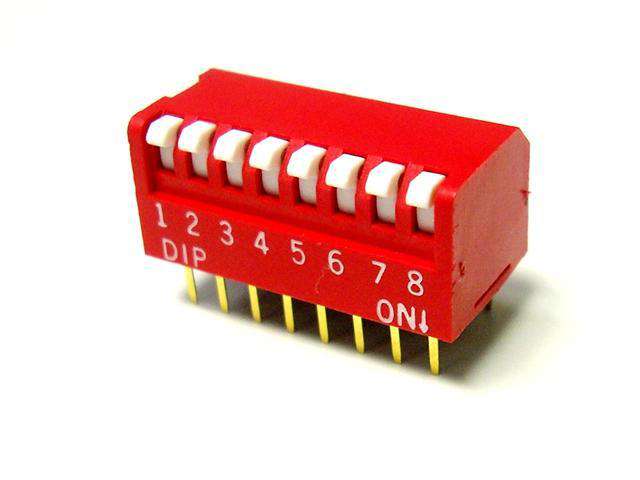

Piano Type DIP Switch • Pitch : 2,54mm • Form : 1A-SPST(NO) • 25mA-24VDC • 400gf max • PCB-Thru-Hole Straight
Overview
Features
Specification
| Transition Style | Latching |
| Actuator Style | Short-Piano Key |
| Actuating Force | 400gf max |
| Termination | PCB-Thru-Hole Straight |
| Switch Circuit | 1A-SPST(NO) |
| Electrical Rating | 25mA-24VDC |
| Electrical Life | 2000 Operation Cycles |
| No.of Poles/Pins | 8Pos |
| Base Colour | Red |
| Actuator Colour | White |
| Size | Pitch : 2,54mm |
| Mechanical Life | 2000 Operations |
| Stroke | 2.0mm |
| Temperature | -20°C ~ +70°C |
$0.41
Original: $1.36
-70%KTP08—
$1.36
$0.41Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Piano Type DIP Switch • Pitch : 2,54mm • Form : 1A-SPST(NO) • 25mA-24VDC • 400gf max • PCB-Thru-Hole Straight
Overview
Features
Specification
| Transition Style | Latching |
| Actuator Style | Short-Piano Key |
| Actuating Force | 400gf max |
| Termination | PCB-Thru-Hole Straight |
| Switch Circuit | 1A-SPST(NO) |
| Electrical Rating | 25mA-24VDC |
| Electrical Life | 2000 Operation Cycles |
| No.of Poles/Pins | 8Pos |
| Base Colour | Red |
| Actuator Colour | White |
| Size | Pitch : 2,54mm |
| Mechanical Life | 2000 Operations |
| Stroke | 2.0mm |
| Temperature | -20°C ~ +70°C |
