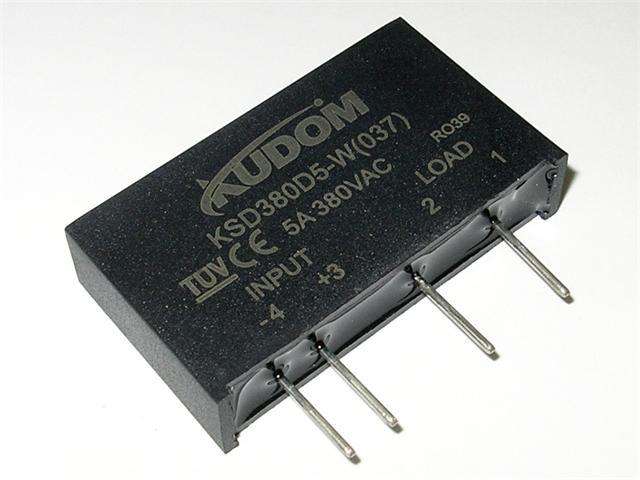

KSD380D5-W (037)

Product image 1

KSD380D5-W (037)

380VAC 5A Single Phase SIL Solid State Relay with 4~32VDC Control Voltage, Zero Crossing Mode

Overview

Features

Specification

  • Input Circuit :
    • Control Voltage Range : 4~32VDC
    • Minimum Turn-On Voltage : 4VDC
    • Minimum Turn-Off Voltage : 1VDC
    • Maximum Input Current : 20mA
  • Output Circuit
    • Load Voltage Range : 48~440VAC
    • Transient Overvoltage : 800Vpk
    • Load Current Range : 0.1~5A
    • Maximum Turn-On Time : 1/2AC Cycle + 1ms
    • Maximum Turn-Off Time : 1/2AC Cycle + 1ms
    • Maximum Surge Current [@10ms] : 250A
  • Dielectric Strength : ≥4000Vrms [Input/Output]

      • Downloads

      $5.16

      Original: $17.21

      -70%
      KSD380D5-W (037)—

      $17.21

      $5.16
