KEMO M150
DC + Pulse Converter 110 V/AC or 230 V/AC Module
Overview
By connecting this module in series, it is possible to control our power control modules (230 V/AC or 110 V/AC) M012 + M028 (from microcomputers or PCs) with a DC voltage or a pulse width modulation. This module is connected at the spot of the potentiometer. Galvanic separation of the control circuit via optocouplers. Control may be done optionally (at 230 V/AC) 1 - 5 V/DC, 3 - 12 V/DC, 6 - 24 V/DC. Or TTL rectangular pulses 5 V/DC, 1 - 10 kHz pulse width 10 - 90 % PWM (Puls width modulation). Regulation is done by changing the pulse width.
Features
Specification
- Operating Voltage : 110VAC or 230VAC (is led to the dimmer module via the connections)
- Output : The module delivers a control voltage for the potentiometer input of the dimmer modules M012, M028 or M028N
- Input : The module M150 may either be controlled with control DC voltages of 1~5VDC or 3~12VDC or 6~24VDC. Or with TTL pulses with a pulse width modulation
- Frequency : between 1~10 kHz
- Impulse voltage : approx. 5VDC, pulse width 10~90% PWM. The power is adjusted with the pulse width 10~90%
- Input Resistances : control input 1~5VDC > 1,4 k, control input 3~12VDC > 4,1 k, control input 6~24VDC > 9,1 k
- TTL pulse input : > 1,1 k
- Galvanic Separation : via an optocoupler between the control inputs and the signal output towards the power control module

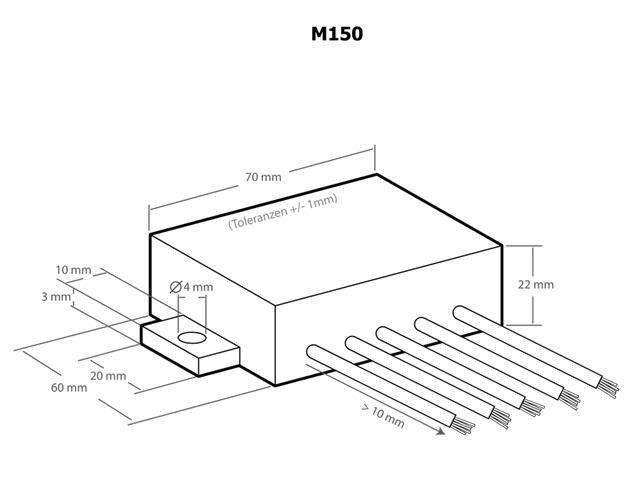

- Dimensions : approx. 70 x 60 x 23 mm (without fastening straps)
