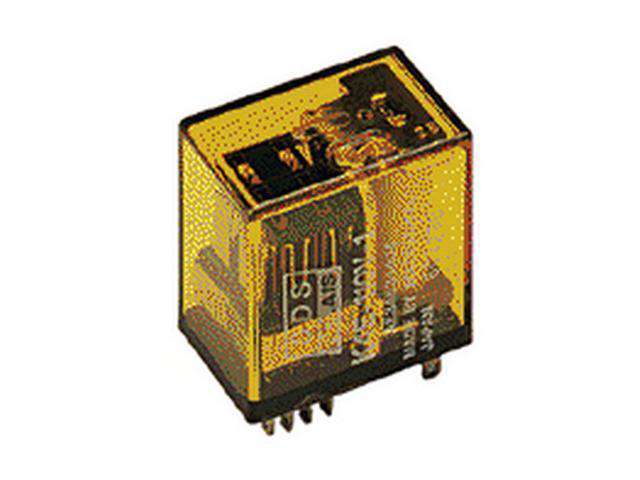

K6-48V
Medium Power Relay • Form 6C • VCoil= 48V DC • IMax Switching= 1A • RCoil= 1.7kΩ • Plug-In • Vertical Case
Overview
Features
Bifurcated Contacts
Vertical Case
Specification
| Model |
|
|
| Contact Form | Form 6C | |
| Size Category | Std Size | |
| Size | 35x19x30mm | |
| Termination | Plug-In | |
| Coil Rated Voltage | 48V | |
| AC/DC Voltage | DC | |
| Max. Switching Current | 1A | |
| Electrical Rating | 2A/220VAC/VDC | |
| Coil Power | 1.36W Power | |
| Coil Resistance | 1.7kΩ | |
| Isolation Voltage | 750V | |
| Approvals | UL/CSA | |
| Contact Material | Ag | |
| No. of Pins | 20 Pin(s) | |
| No. of Poles | 6 Pole(s) |
Downloads
$5.22
Original: $17.41
-70%K6-48V—
$17.41
$5.22Product Information
