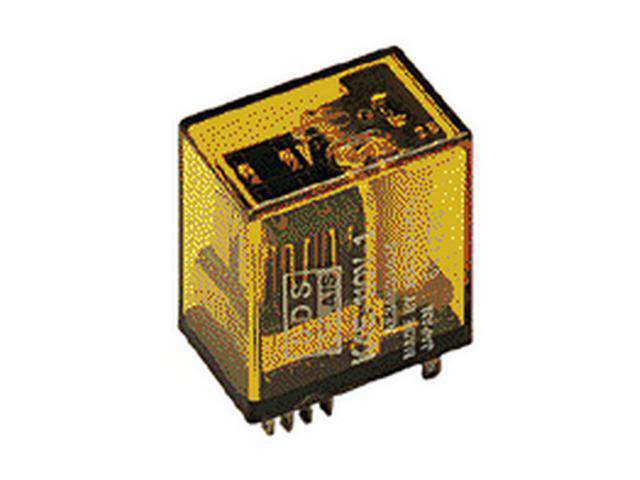

K4E-6V-1
Medium Power Relay • Form 4C • VCoil= 6V DC • IMax Switching= 1A • RCoil= 58Ω • Plug-In • Vertical Case
Overview
Features
Bifurcated Contacts
Specification
| Model | K4EDC6V1 |
| Contact Form | Form 4C |
| Size Category | Std Size |
| Size | 29x19x30mm |
| Termination | Plug-In |
| Coil Rated Voltage | 6V |
| AC/DC Voltage | DC |
| Max. Switching Current | 1A |
| Electrical Rating | 2A/220VAC/VDC |
| Coil Power | 620mW Power |
| Coil Resistance | 58Ω |
| Isolation Voltage | 750V |
| Approvals | UL/CSA |
| Contact Material | Ag |
| No. of Pins | 14 Pin(s) |
| No. of Poles | 4 Pole(s) |
Downloads
$4.81
Original: $16.03
-70%K4E-6V-1—
$16.03
$4.81Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Medium Power Relay • Form 4C • VCoil= 6V DC • IMax Switching= 1A • RCoil= 58Ω • Plug-In • Vertical Case
Overview
Features
Bifurcated Contacts
Specification
| Model | K4EDC6V1 |
| Contact Form | Form 4C |
| Size Category | Std Size |
| Size | 29x19x30mm |
| Termination | Plug-In |
| Coil Rated Voltage | 6V |
| AC/DC Voltage | DC |
| Max. Switching Current | 1A |
| Electrical Rating | 2A/220VAC/VDC |
| Coil Power | 620mW Power |
| Coil Resistance | 58Ω |
| Isolation Voltage | 750V |
| Approvals | UL/CSA |
| Contact Material | Ag |
| No. of Pins | 14 Pin(s) |
| No. of Poles | 4 Pole(s) |
