IDE 41045
Enclosure IP65 108x108x64mm Tight Box with Plain Sides Fitting for Schuko Socket and Sloping Socket
Enclosure - IP65 108 X 108 X 64mm Tight Box
Specifications
Characteristics:

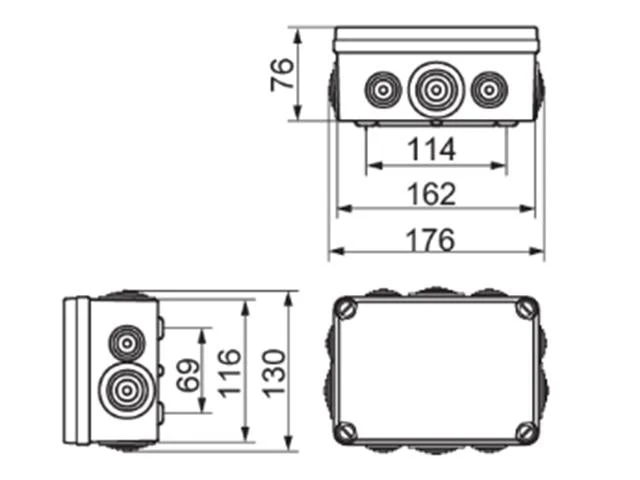

- Exterior dimensions (Height x Width x Depth) : 162x116x76 mm
- Installation : Surface
- Color : RAL 7035 grey
- Window : Opaque cover
- Weight (Kg) : 0,39
- Components : 1 socket 3P+N+E 16A - 1 IP44 Schuko-type socket IP44 2+E 16A
- Materials : Halogen-free plastic materials. Base and cover: Shock-proof PS
Technical data:
- Degree of protection : IP44
- Resistance to impact : IK07
- Glow wire resistance : 650 ÂșC
- Ball pressure test : 70 ÂșC
- Ambient temperature range : -25 ÂșC / +40 ÂșC
- Maximum operating voltage : 1000 V AC / 1500 V DC
Downloads
Additional Information
| Device | Enclosure |
| Type | IP65 | 108 X 108 X 64mm | Tight Box | Plain Sides Fitting |
| Highlights | for Schuko Socket and Sloping Socket |
| Dimensions | 108 X 108 X 64mm |
