IDE 37400
Main Switch and Distribution Enclosure • IP-40 • 451x192x85mm
Feature(s)
ICP+16 modules
Additional Information
| Code | 37400 |
| Reference | IB20 |
| Group | Industrial Enclosures |
| Series | Diamant |
| Device | Main Switch and Distribution Enclosure |
| Type | White (frame + base ) Body (no window) |

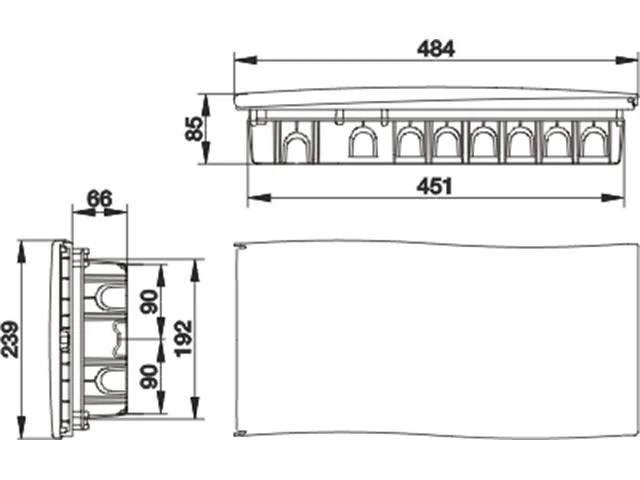

| Size | 451mm x 192mm x 85mm |
| Degree of Protection | IP-40 |
| Resistance to Impact | IK08 |
| Auto- Extinguishing Degree | HJB (UL94) |
| Test Of Resistance to Glow Wire | 650°C |
| Ball Pressure Test | 70°C |
$14.71
IDE 37400—
$14.71
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Main Switch and Distribution Enclosure • IP-40 • 451x192x85mm
Feature(s)
ICP+16 modules
Additional Information
| Code | 37400 |
| Reference | IB20 |
| Group | Industrial Enclosures |
| Series | Diamant |
| Device | Main Switch and Distribution Enclosure |
| Type | White (frame + base ) Body (no window) |
| Size | 451mm x 192mm x 85mm |
| Degree of Protection | IP-40 |
| Resistance to Impact | IK08 |
| Auto- Extinguishing Degree | HJB (UL94) |
| Test Of Resistance to Glow Wire | 650°C |
| Ball Pressure Test | 70°C |
