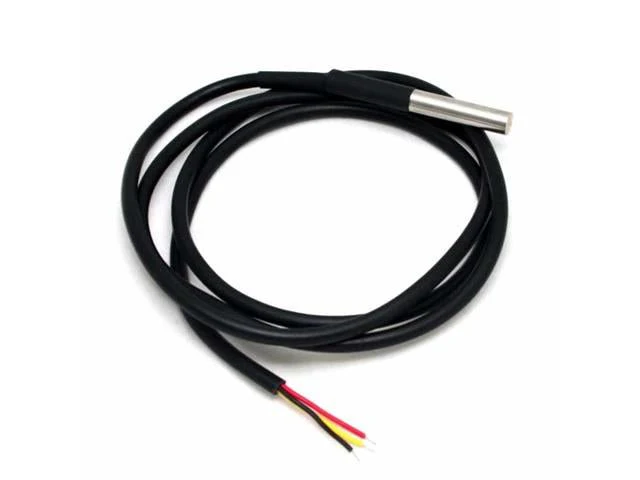

HKD TEMPERATURE PROBE DS18B20 2M
Stainless Steel Waterproof Temperature Probe on 2m Cable. -55°C ~ +125 °C
Waterproof Temperature Probe
Features
- Usable with 3.0V to 5.5V power/data
- ±0.5°C Accuracy from -10°C to +85°C
- Usable temperature range: -55 to 125°C
- 9 to 12 bit selectable resolution
- Uses 1-Wire interface- requires only one digital pin for communication
- Unique 64 bit ID burned into chip
- Multiple sensors can share one pin
- Temperature-limit alarm system
- Query time is less than 750ms
3 wires interface:
- Red wire - VCC
- Black wire - GND
- Yellow wire - DATA
- Stainless steel tube 6mm diameter by 35mm long
- Cable diameter: 4mm
- Length: 2M
Additional Information
| Device | Probe |
| Type | Stainless Steel | Temperature | Waterproof |
