HKD MAX9814 MICROPHONE AGC AMP
MAX9814 Low Noise Microphone Amplifier with AGC. Voltage: 2.7-5.5V @ 3mA Current Output: 2VPP ON 1.25V BIAS

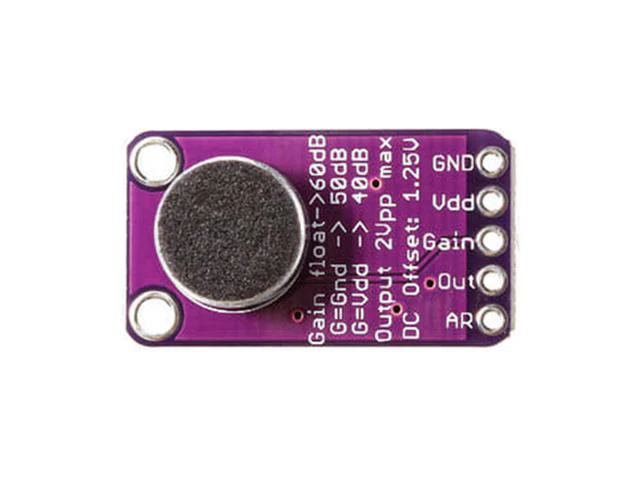

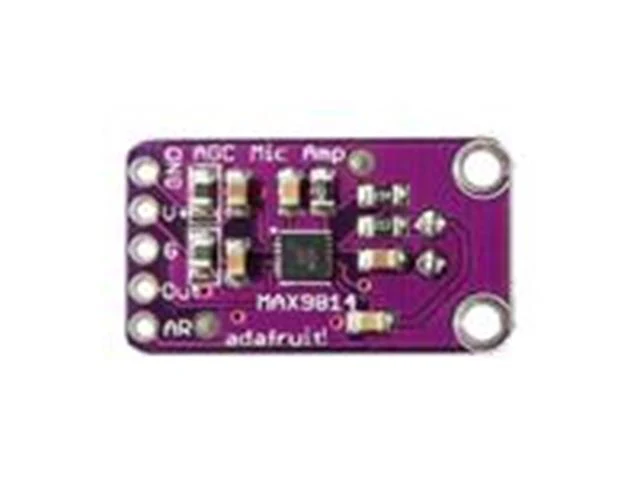

MAX9814 AGC Microphone Amplifier Module
Specifications
- Automatic gain control (AGC)
- 3 gain Settings (40dB, 50dB, 60dB)
- Programmable action time
- Programmable action and release time ratio
- 2.7V to 5.5V power voltage range
- Low input noise density 30nV/
- Low THD: 0.04% (typical value)
- Low power off mode
- Built-in 2V low noise microphone bias
- Provides a space-saving 14 pin TDFN (3mm x 3mm) package
- Temperature range from -40°C to +85°C expansion stage
Additional Information
| Device | Amplifier Module |
| Type | MAX9814 | AGC | Microphone |
