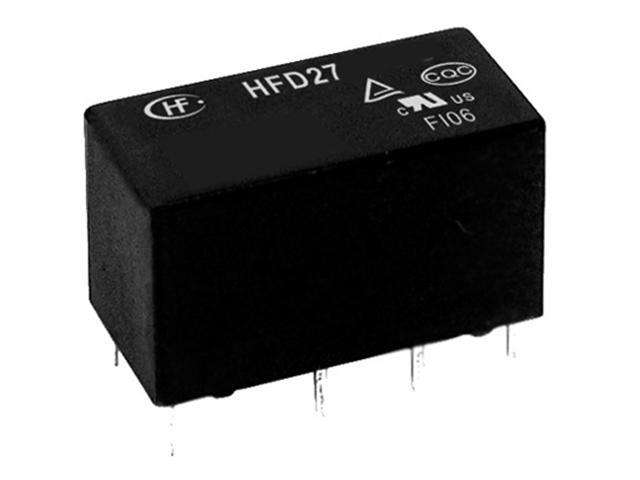

HFD27-009-S
Subminiature Signal Relay, Form 2C, VCoil= 9V DC, IMax Switching= 2A , RCoil= 405Ω, PCB, in Vertical Case
Overview
Features
Specification
- Sensitive Coil
| Model | HFD27-009-S |
| Brand | Hongfa |
| Contact Form | Form 2C |
| Size Category | Submini |
| Size | 20.2x10x11.5mm |
| Termination | PCB |
| Coil Rated Voltage | 9V |
| AC/DC Voltage | DC |
| Max. Switching Current | 2A |
| Electrical Rating | 1A 125VAC | 2A 30VDC |
| Coil Power | 200mW Power |
| Coil Resistance | 405Ω |
| Isolation Voltage | 1K5V |
| Approvals | UL/CUL/TUV |
| Contact Material | AgNi + Au plated |
| No. of Pins | 8 Pin(s) |
| No. of Poles | 2 Pole(s) |
Downloads
$0.33
Original: $1.11
-70%HFD27-009-S—
$1.11
$0.33Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Subminiature Signal Relay, Form 2C, VCoil= 9V DC, IMax Switching= 2A , RCoil= 405Ω, PCB, in Vertical Case
Overview
Features
Specification
- Sensitive Coil
| Model | HFD27-009-S |
| Brand | Hongfa |
| Contact Form | Form 2C |
| Size Category | Submini |
| Size | 20.2x10x11.5mm |
| Termination | PCB |
| Coil Rated Voltage | 9V |
| AC/DC Voltage | DC |
| Max. Switching Current | 2A |
| Electrical Rating | 1A 125VAC | 2A 30VDC |
| Coil Power | 200mW Power |
| Coil Resistance | 405Ω |
| Isolation Voltage | 1K5V |
| Approvals | UL/CUL/TUV |
| Contact Material | AgNi + Au plated |
| No. of Pins | 8 Pin(s) |
| No. of Poles | 2 Pole(s) |
