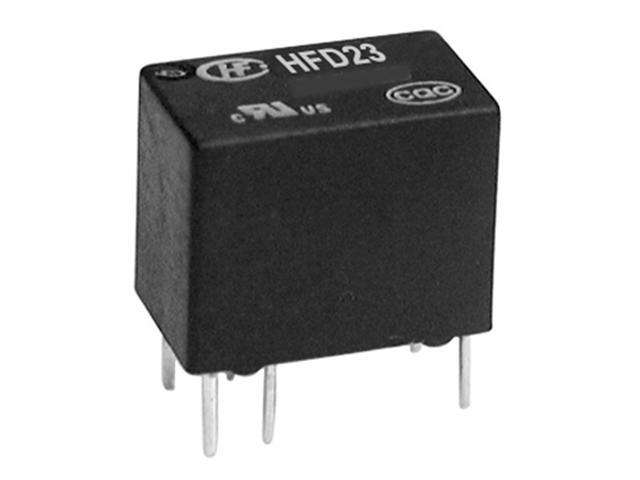

HFD23-006-1ZS
Subminiature Signal Relay, Form 1C, VCoil= 6V DC, IMax Switching= 2A , RCoil= 240Ω, PCB, in Vertical Case
Overview
Features
Specification
Â
- Sensitive Coil
| Model | HFD23-006-1ZS |
| Brand | Hongfa |
| Contact Form | Form 1C |
| Size Category | Submini |
| Size | 12.5x7.5x10mm |
| Termination | PCB |
| Coil Rated Voltage | 6V |
| AC/DC Voltage | DC |
| Max. Switching Current | 2A |
| Electrical Rating | 0.5A 125VAC | 1A 30VDC |
| Coil Power | 150mW Power |
| Coil Resistance | 240Ω |
| Isolation Voltage | 1KV |
| Approvals | UL/CUL |
| Contact Material | AgNi + Au plated |
| No. of Pins | 6 Pin(s) |
| No. of Poles | 1 Pole(s) |
$0.42
Original: $1.39
-70%HFD23-006-1ZS—
$1.39
$0.42Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Subminiature Signal Relay, Form 1C, VCoil= 6V DC, IMax Switching= 2A , RCoil= 240Ω, PCB, in Vertical Case
Overview
Features
Specification
Â
- Sensitive Coil
| Model | HFD23-006-1ZS |
| Brand | Hongfa |
| Contact Form | Form 1C |
| Size Category | Submini |
| Size | 12.5x7.5x10mm |
| Termination | PCB |
| Coil Rated Voltage | 6V |
| AC/DC Voltage | DC |
| Max. Switching Current | 2A |
| Electrical Rating | 0.5A 125VAC | 1A 30VDC |
| Coil Power | 150mW Power |
| Coil Resistance | 240Ω |
| Isolation Voltage | 1KV |
| Approvals | UL/CUL |
| Contact Material | AgNi + Au plated |
| No. of Pins | 6 Pin(s) |
| No. of Poles | 1 Pole(s) |
