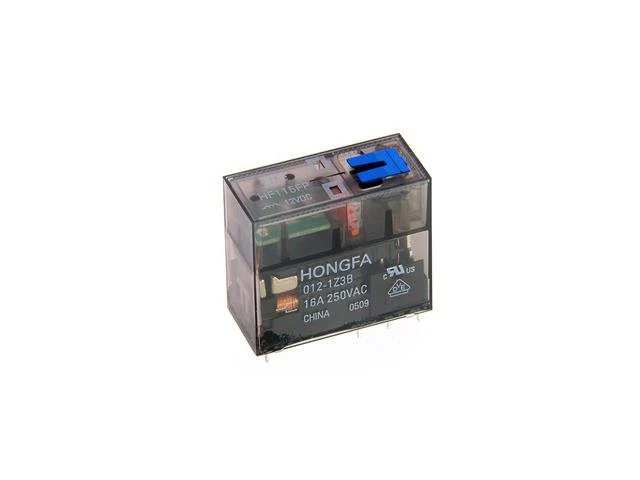

HF115FP-012-1Z3B
High Power Mini Flux Proof Transparent Relay w/LED Indicator & Test Clip Form 1C (1c/o) 5mm Contact Spacing 12VDC 360 Ohm Coil 16A 250VAC (440VAC Max.)
High Power Mini Flux Proof Transparent Relay w/LED Indicator & Test Clip
Features
- 1 pole 16A, 2 pole 8A , 1 CO & 2 CO contacts
- 5kV dielectric, Creepage distance 8 mm (coil to contacts)
- Meeting VDE 0700, 0631 reinforce insulation
- DC/AC coil type relay , Coil power 400mW / 0.75VA
- Manual test device
- Type with mechanical indicator / electrical indicator
- Sockets available
Downloads
Additional Information
| Device | Relay |
| Type | High Power | Mini Flux Proof |
| Contact Form | Form 1C |
| Coil Rated Voltage | 12V |
| Max. Switching Current | 16A |
| Coil Resistance | 360Ω |
$1.67
Original: $5.58
-70%HF115FP-012-1Z3B—
$5.58
$1.67Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
High Power Mini Flux Proof Transparent Relay w/LED Indicator & Test Clip Form 1C (1c/o) 5mm Contact Spacing 12VDC 360 Ohm Coil 16A 250VAC (440VAC Max.)
High Power Mini Flux Proof Transparent Relay w/LED Indicator & Test Clip
Features
- 1 pole 16A, 2 pole 8A , 1 CO & 2 CO contacts
- 5kV dielectric, Creepage distance 8 mm (coil to contacts)
- Meeting VDE 0700, 0631 reinforce insulation
- DC/AC coil type relay , Coil power 400mW / 0.75VA
- Manual test device
- Type with mechanical indicator / electrical indicator
- Sockets available
Downloads
Additional Information
| Device | Relay |
| Type | High Power | Mini Flux Proof |
| Contact Form | Form 1C |
| Coil Rated Voltage | 12V |
| Max. Switching Current | 16A |
| Coil Resistance | 360Ω |
