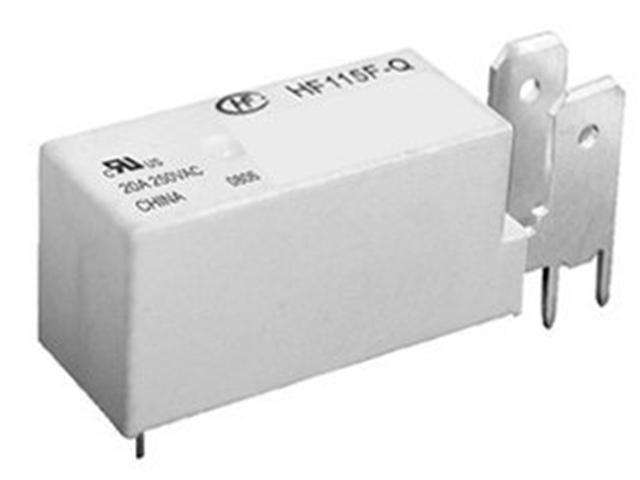

HF115F-Q-024-1HT
Miniature High Power Relay, Form 1A, VCoil= 24V DC, IMax Switching= 20A , RCoil= 1.44kΩ, Quick Connect Terminals (Vertical), in Low Profile Case
Overview
Features
Specification
- Plastic Sealed
- Low Profile Case ,Insulation Class F
- ≥8mm Creepage Distance
| Model | HF115F-Q-024-1HT |
| Brand | Hongfa |
| Contact Form | Form 1A |
| Size Category | Mini |
| Size | 31.5x12.7x15.7mm |
| Termination | Quick Connect |
| Coil Rated Voltage | 24V |
| AC/DC Voltage | DC |
| Max. Switching Current | 20A |
| Electrical Rating | 20A | 250VAC |
| Coil Power | 400mW Power |
| Coil Resistance | 1.44kΩ |
| Isolation Voltage | 5Kv |
| Approvals | UL/CUL/VDE |
| Contact Material | AgNi |
Downloads
$1.10
Original: $3.68
-70%HF115F-Q-024-1HT—
$3.68
$1.10Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Miniature High Power Relay, Form 1A, VCoil= 24V DC, IMax Switching= 20A , RCoil= 1.44kΩ, Quick Connect Terminals (Vertical), in Low Profile Case
Overview
Features
Specification
- Plastic Sealed
- Low Profile Case ,Insulation Class F
- ≥8mm Creepage Distance
| Model | HF115F-Q-024-1HT |
| Brand | Hongfa |
| Contact Form | Form 1A |
| Size Category | Mini |
| Size | 31.5x12.7x15.7mm |
| Termination | Quick Connect |
| Coil Rated Voltage | 24V |
| AC/DC Voltage | DC |
| Max. Switching Current | 20A |
| Electrical Rating | 20A | 250VAC |
| Coil Power | 400mW Power |
| Coil Resistance | 1.44kΩ |
| Isolation Voltage | 5Kv |
| Approvals | UL/CUL/VDE |
| Contact Material | AgNi |
