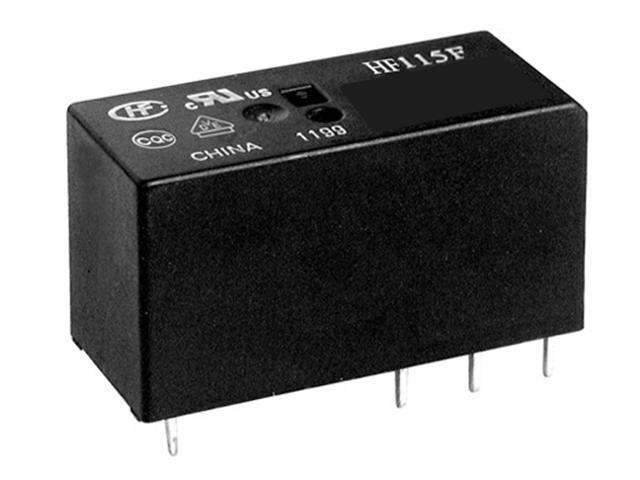

HF115F-110-1ZS2AF
Miniature High Power Relay, Form 1C, VCoil= 110V DC, IMax Switching= 12A , RCoil= 25.2kΩ, PCB, in Low Profile Case
Overview
Features
Specification
- Plastic Sealed
- Low Profile Case ,Insulation Class B
- 10mm Creepage Distance
- 5mm Pin Pitch
- Relay Socket base AS626 Or PSP-08A
| Model | HF115F-110-1ZS2A |
| Brand | Hongfa |
| Contact Form | Form 1C |
| Size Category | Mini |
| Size | 29.0x12.7x15.7mm |
| Termination | PCB |
| Coil Rated Voltage | 110V |
| AC/DC Voltage | DC |
| Max. Switching Current | 12A |
| Electrical Rating | 12A | 250VAC |
| Coil Power | 400mW Power |
| Coil Resistance | 25.2kΩ |
| Isolation Voltage | 5KV |
| Approvals | UL/CUR/VDE/FIMK. |
| Contact Material | AgCdO |
| No. of Pins | 5 Pin(s) |
| No. of Poles | 1 Pole(s) |
Downloads
$1.09
Original: $3.65
-70%HF115F-110-1ZS2AF—
$3.65
$1.09Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Miniature High Power Relay, Form 1C, VCoil= 110V DC, IMax Switching= 12A , RCoil= 25.2kΩ, PCB, in Low Profile Case
Overview
Features
Specification
- Plastic Sealed
- Low Profile Case ,Insulation Class B
- 10mm Creepage Distance
- 5mm Pin Pitch
- Relay Socket base AS626 Or PSP-08A
| Model | HF115F-110-1ZS2A |
| Brand | Hongfa |
| Contact Form | Form 1C |
| Size Category | Mini |
| Size | 29.0x12.7x15.7mm |
| Termination | PCB |
| Coil Rated Voltage | 110V |
| AC/DC Voltage | DC |
| Max. Switching Current | 12A |
| Electrical Rating | 12A | 250VAC |
| Coil Power | 400mW Power |
| Coil Resistance | 25.2kΩ |
| Isolation Voltage | 5KV |
| Approvals | UL/CUR/VDE/FIMK. |
| Contact Material | AgCdO |
| No. of Pins | 5 Pin(s) |
| No. of Poles | 1 Pole(s) |
