HF115F-006-1ZS3A

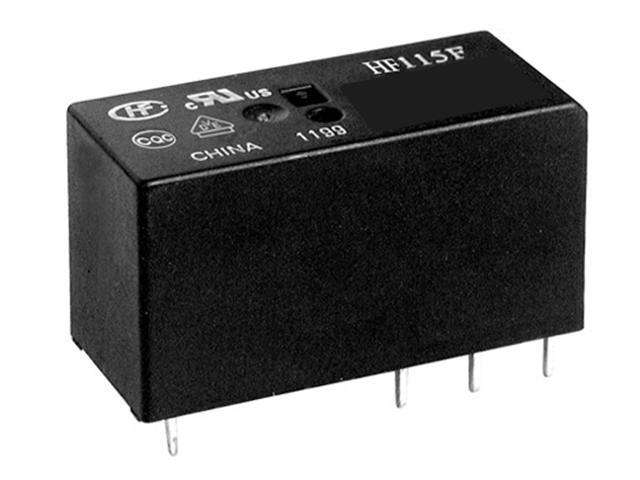

Product image 1

HF115F-006-1ZS3A

Miniature High Power Relay, Form 1C, VCoil= 6V DC, IMax Switching= 16A , RCoil= 90Ω, PCB, in Low Profile Case

Overview

Features

Specification

    • Plastic Sealed
    • Low Profile Case ,Insulation Class B
    • 10mm Creepage Distance
    • 5mm Pin Pitch
    • Relay Socket base AS626 Or PSP-08A



Model HF115F-006-1ZS3A
Brand Hongfa
Contact Form Form 1C
Size Category Mini
Size 29.0x12.7x15.7mm
Termination PCB
Coil Rated Voltage 6V
AC/DC Voltage DC
Max. Switching Current 16A
Electrical Rating 16A | 250VAC
Coil Power 400mW Power
Coil Resistance 90Ω
Isolation Voltage 5KV
Approvals UL/CUR/VDE/FIMK.
Contact Material AgCdO
No. of Pins 8 Pin(s)
No. of Poles 1 Pole(s)

Downloads

$0.79

Original: $2.65

-70%
HF115F-006-1ZS3A—

$2.65

$0.79

Product Information

Shipping & Returns

Description

Miniature High Power Relay, Form 1C, VCoil= 6V DC, IMax Switching= 16A , RCoil= 90Ω, PCB, in Low Profile Case

Overview

Features

Specification

    • Plastic Sealed
    • Low Profile Case ,Insulation Class B
    • 10mm Creepage Distance
    • 5mm Pin Pitch
    • Relay Socket base AS626 Or PSP-08A



Model HF115F-006-1ZS3A
Brand Hongfa
Contact Form Form 1C
Size Category Mini
Size 29.0x12.7x15.7mm
Termination PCB
Coil Rated Voltage 6V
AC/DC Voltage DC
Max. Switching Current 16A
Electrical Rating 16A | 250VAC
Coil Power 400mW Power
Coil Resistance 90Ω
Isolation Voltage 5KV
Approvals UL/CUR/VDE/FIMK.
Contact Material AgCdO
No. of Pins 8 Pin(s)
No. of Poles 1 Pole(s)
