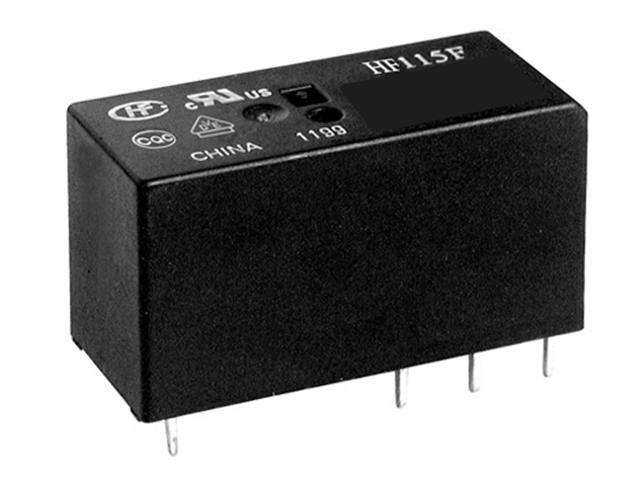

HF115F-005-1ZS1A
Miniature High Power Relay, Form 1C, VCoil= 5V DC, IMax Switching= 12A , RCoil= 62Ω, PCB, in Low Profile Case
Overview
Features
Specification
- Plastic Sealed
- Low Profile Case ,Insulation Class B
- 10mm Creepage Distance
- 3.5mm Pin Pitch
- Relay socket base AS625
| Brand | Hongfa |
| Contact Form | Form 1C |
| Size Category | Mini |
| Size | 29.0x12.7x15.7mm |
| Termination | PCB |
| Coil Rated Voltage | 5V |
| AC/DC Voltage | DC |
| Max. Switching Current | 12A |
| Electrical Rating | 12A | 250VAC |
| Coil Power | 400mW Power |
| Coil Resistance | 62Ω |
| Isolation Voltage | 5KV |
| Approvals | UL/CUR/VDE/FIMK. |
| Contact Material | AgCdO |
| No. of Pins | 5 Pin(s) |
| No. of Poles | 1 Pole(s) |
Downloads
$0.77
Original: $2.56
-70%HF115F-005-1ZS1A—
$2.56
$0.77Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Miniature High Power Relay, Form 1C, VCoil= 5V DC, IMax Switching= 12A , RCoil= 62Ω, PCB, in Low Profile Case
Overview
Features
Specification
- Plastic Sealed
- Low Profile Case ,Insulation Class B
- 10mm Creepage Distance
- 3.5mm Pin Pitch
- Relay socket base AS625
| Brand | Hongfa |
| Contact Form | Form 1C |
| Size Category | Mini |
| Size | 29.0x12.7x15.7mm |
| Termination | PCB |
| Coil Rated Voltage | 5V |
| AC/DC Voltage | DC |
| Max. Switching Current | 12A |
| Electrical Rating | 12A | 250VAC |
| Coil Power | 400mW Power |
| Coil Resistance | 62Ω |
| Isolation Voltage | 5KV |
| Approvals | UL/CUR/VDE/FIMK. |
| Contact Material | AgCdO |
| No. of Pins | 5 Pin(s) |
| No. of Poles | 1 Pole(s) |
