HA-016-F/B

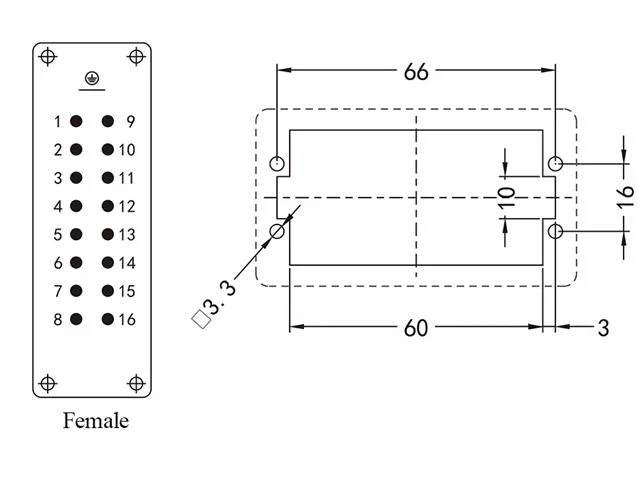

Series 16A Insert 16P+E - Size 16A - Female Screw Termination with Wire Protection 16A/250V = 09200162812
Series 16A Insert 16P+E
Feature(s)
Suitable Hoods, Housings and Covers
H16A-SE-2B-M20
H16A-SEH-2B-M25
H16A-TE-2B-M20
H16A-BK-1L/SC-CV
H16A-SF-1L/SC-M25
H16A-MCV-1L/SC.1
H16A-MCV-2B/1S
H16A-MCV-2B/2S
Specifications
| Technical characteristics | |
| international standard： | IEC60664-1、IEC61984 |
| Number of contacts： | 3+PE、4+PE、10+pe、16+pe、32+PE |
| Insert | |
| Rated impulse voltage | 4kV |
| Pollution degree | 3 |
| Insulation resistance | ≥10^10 Ohm |
| Material(insert) | polycarbonate |
| Limiting temperaures | -40°C~125°C |
| Flammability (insert) acc.to UL 94 | V-0 |
| Rated voltage acc.to UL/CSA | 600V |
| Mating cycles | ≥500 |
| Contact pin | |
| Material(contact) | Copper Alloy |
| Surface | Silver or Gold Plated |
| Contact resisance | ≤1mΩ |
| Terminal | Screw |
| Wire gauge | 0.75-2.5mm^2 18-14AWG |
| Stripping length | 7.5mm^2 |
| Terminal | Crimp |
| Wire gauge | 0.14-4mm^2 26-12AWG |
| Stripping length | 7.5mm^2 |
Additional Information
| Device | Insert |
| Type | Series 16A | 16P+E |
