RJ-45 Interface

• 8 10/100/1000Mbps Gigabit Ethernet ports
• Complies with IEEE 802.3, 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T
• Supports Auto MDI/MDI-X function

Switching

• Hardware based 10/100Mbps, half / full duplex and 1000Mbps full duplex mode, flow control and auto-negotiation
• Features Store-and-Forward mode with wire-speed filtering and forwarding rates
• IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
• Integrated address look-up engine, supporting 8K absolute MAC addresses
• 9K Jumbo packet size

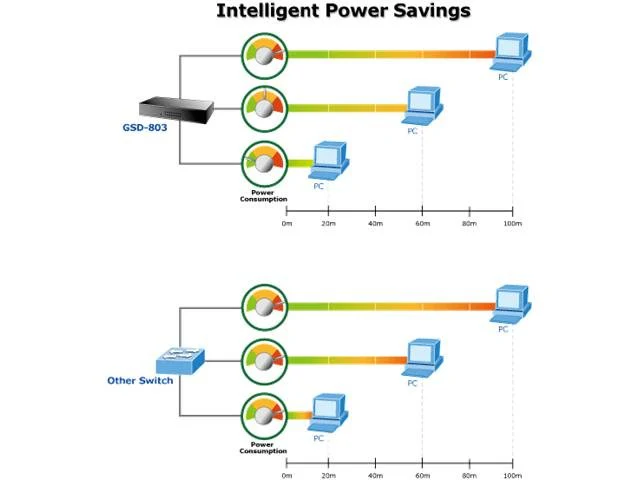

• Power saving ability for Green networking
• Automatic address learning and address aging
• Supports CSMA/CD protocol

Hardware

• Made of metal, Desktop size and Wall-Mount design
• LED indicators for system power, per port 1000 & Link / Act
• 5V DC, 1A external power adapter
• FCC, CE Class B compliant

1. Datasheet - GSD-803
2. UserManual - GSD-803
