FNIRSI DSO152 ONE CH 200KHZ

Product image 1
1 / 6

FNIRSI DSO152 ONE CH 200KHZ

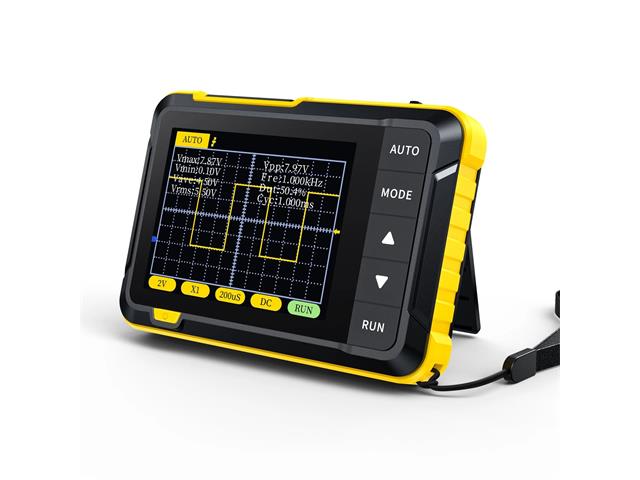

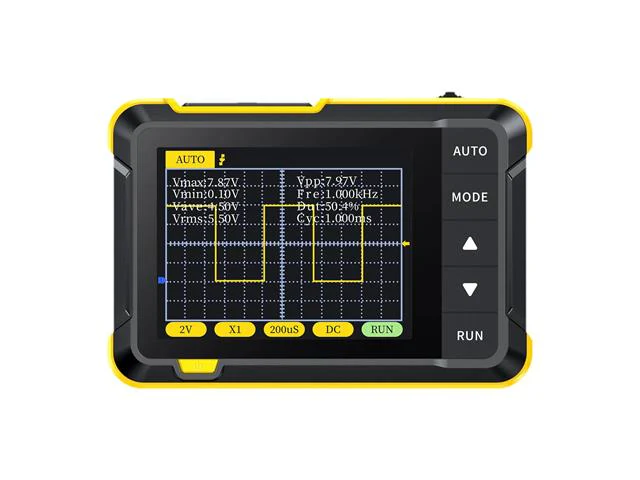

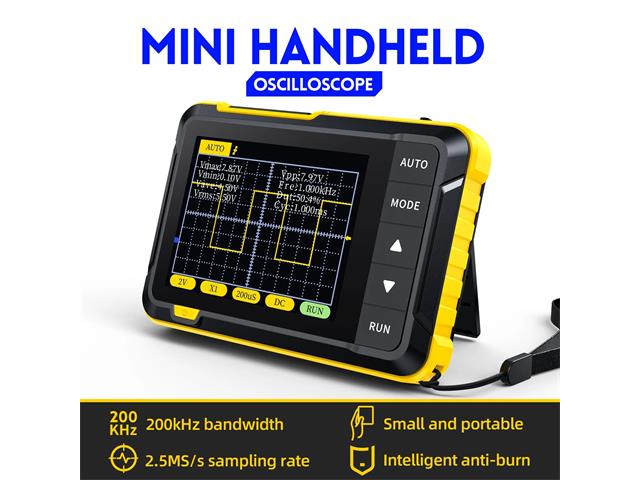

DSO-152 is a Handheld Digital Oscilloscope with a 200KHZ Bandwidth and 2.5MSA/S Sampling Rate. (Does Not Include FNIRSI P6100 X1 X10 SCOPE PROBE and BDD OSCOPE PROBE BNC-MCX ADAPTER)

Handheld Digital Oscilloscope

Features

  • Portable 2.8" TFT Handheld Oscilloscope for beginners,  hobbyist
  • Dso oscilloscope: 2.5MS/s, 200KHz bandwidth, wide voltage range.
  • High-definition 320*240 LCD, Type-C interface.
  • fnirsi handheld oscilloscope: Finished assembly, lightweight, perfect for maintenance.
  • Versatile trigger functions: single, normal, automatic.
  • Suitable for analog and digital signals.
  • Convenient one-key AUTO adjustment.
  • Displays waveform without complex setup.
  • 1000mAh lithium battery, up to 4 hours.
  • Long press AUTO for baseline calibration.

Specifications

  • Analog Bandwidth: 0~200kHz
  • 1 Channel
  • Sampling Speed: 2.5MS/s
  • Vertical Scale: 10mV/div ~ 20V/div
  • Timebase Range: 1 μs/div ~ 50 s/div
  • Voltage Range: X1: 40Vpp; X10: 800Vpp
  • Trigger Modes: Auto, Normal, Single
  • Frequency: 1K Duty Cycle: 50%
  • Display: 2.8inch LCD (320×240 pixels)
  • Lithium Battery Capacity: 1000mAh
  • Dimensions: 99 x 68 x 19.5mm
  • Weight: 100g
  • Certification: CE

Downloads

Additional Information

Device Oscilloscope
Type Handheld | Digital
$9.97

Original: $33.25

-70%
FNIRSI DSO152 ONE CH 200KHZ—

$33.25

$9.97
