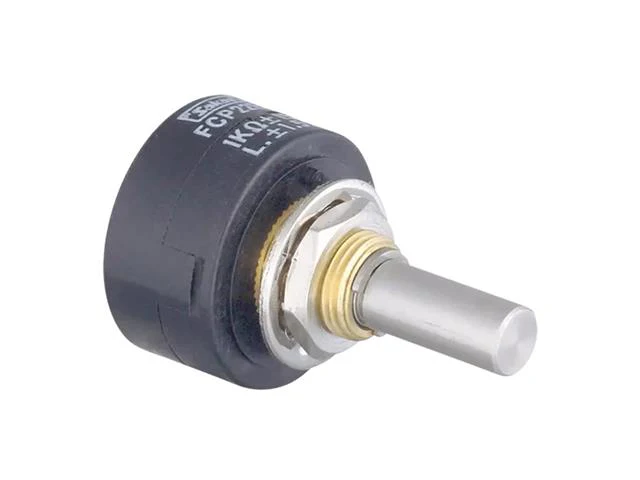

FCP22R-5K
5K00 Potentiometer Single Turn 1W 6,00mm Shaft
5K00 Single Turn Potentiometer
Downloads
Additional Information
| Device | Potentiometer |
| Type | 5K00 | Single Turn |
| Termination | Turret type |
| Tolerance | ±20% |
| Tolerance Code | M |
| Element Type | Conductive Plastic |
| No. of Turns | 1 Turn 360° |
| Mechanical Life | 10 000 000 Cycles |
| Mounting Style | Bush Mount |
| Shaft Diameter | 6.00mm |
| Shaft Type | Slotted Stainless Steel |
| Shaft Length | 22mm |
$8.47
Original: $28.24
-70%FCP22R-5K—
$28.24
$8.47Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
5K00 Potentiometer Single Turn 1W 6,00mm Shaft
5K00 Single Turn Potentiometer
Downloads
Additional Information
| Device | Potentiometer |
| Type | 5K00 | Single Turn |
| Termination | Turret type |
| Tolerance | ±20% |
| Tolerance Code | M |
| Element Type | Conductive Plastic |
| No. of Turns | 1 Turn 360° |
| Mechanical Life | 10 000 000 Cycles |
| Mounting Style | Bush Mount |
| Shaft Diameter | 6.00mm |
| Shaft Type | Slotted Stainless Steel |
| Shaft Length | 22mm |
