DTSM61R

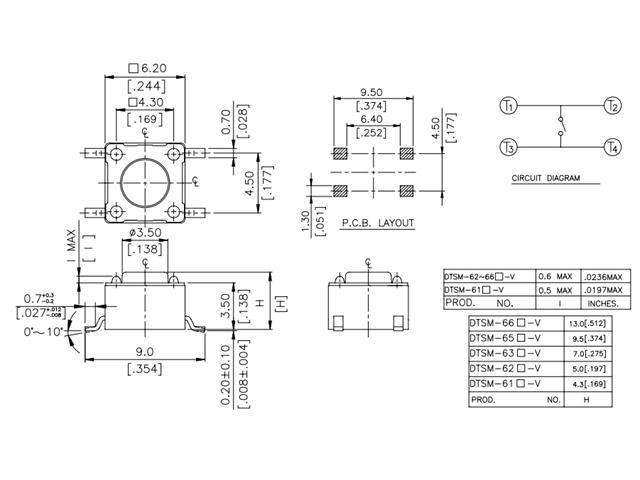

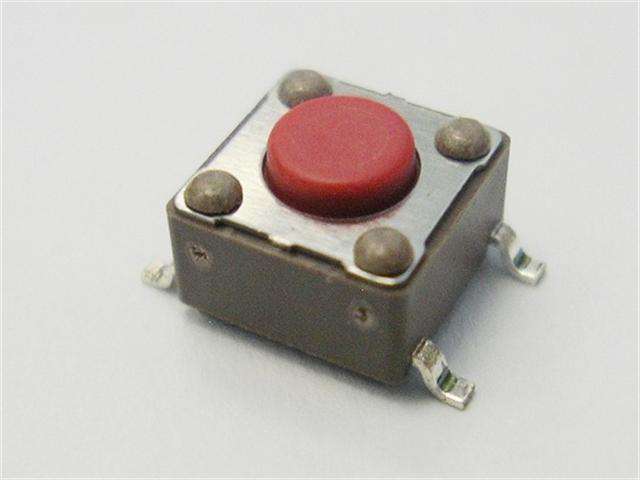

Tactile Switch • Form : 1A - SPST (NO)/4Termn • 50mA-12VDC • 260gf • SMD • Red • Case Size : 6x6 ,Height : 4.3,Lever : 0.8mm
Overview
Features
Specification
| Transition Style | Momentary |
| Actuator Style | Push-Button |
| Actuating Force | 260gf |
| Termination | SMD |
| Switch Circuit | 1A - SPST (NO)/4Termn |
| Electrical Rating | 50mA-12VDC |
| Color | Red |
| Case Length | 6mm |
| Case Width | 6mm |
| Case Height | 4.3mm |
| Lever Size | 0.8mm |
$0.07
Original: $0.22
-68%DTSM61R—
$0.22
$0.07Product Information
