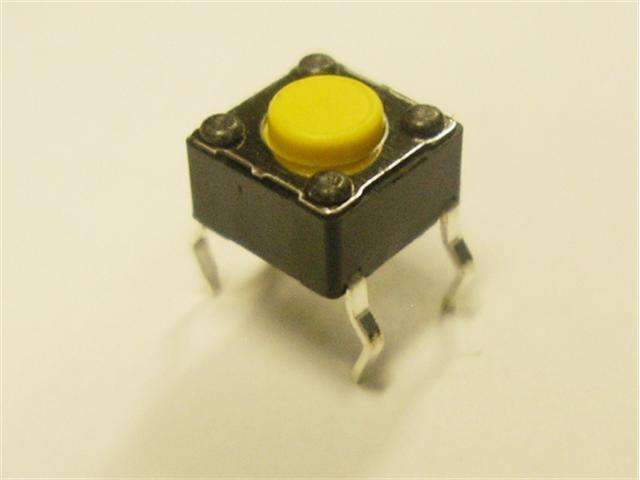

DTS61Y

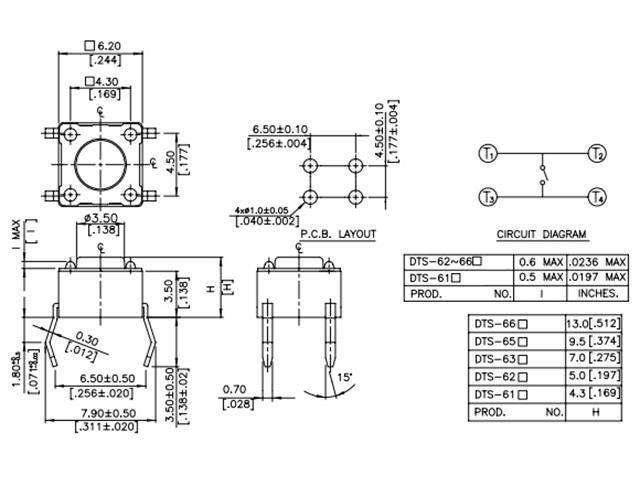

Tactile Switch • Form : 1A - SPST (NO)/4Termn • 50mA-12VDC • 520gf • PCB-ThruHole • Yellow • Case Size : 6x6 ,Height : 4.3,Lever : 0.8mm
Overview
Features
Specification
| Transition Style | Momentary |
| Actuator Style | Push-Button |
| Actuating Force | 520gf |
| Termination | PCB-ThruHole |
| Switch Circuit | 1A - SPST (NO)/4Termn |
| Electrical Rating | 50mA-12VDC |
| Color | Yellow |
| Case Length | 6mm |
| Case Width | 6mm |
| Case Height | 4.3mm |
| Lever Size | 0.8mm |
$0.05
Original: $0.17
-71%DTS61Y—
$0.17
$0.05Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Tactile Switch • Form : 1A - SPST (NO)/4Termn • 50mA-12VDC • 520gf • PCB-ThruHole • Yellow • Case Size : 6x6 ,Height : 4.3,Lever : 0.8mm
Overview
Features
Specification
| Transition Style | Momentary |
| Actuator Style | Push-Button |
| Actuating Force | 520gf |
| Termination | PCB-ThruHole |
| Switch Circuit | 1A - SPST (NO)/4Termn |
| Electrical Rating | 50mA-12VDC |
| Color | Yellow |
| Case Length | 6mm |
| Case Width | 6mm |
| Case Height | 4.3mm |
| Lever Size | 0.8mm |
