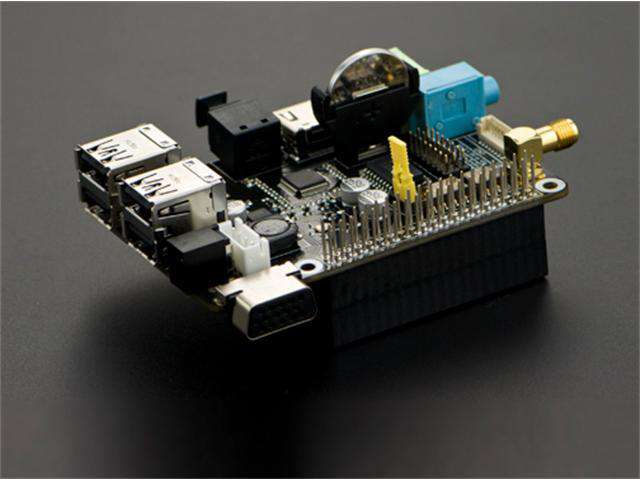

The Expansion Shield X200 is a most cost-effective shield which could apply to Raspberry Pi Model B+ and Raspberry Pi 2 Model B. It integrates a lot of very useful functions such as RTC real time clock; audio input and output; VGA output; USB hub; WIFI; 8-way GPIO. With this shield, you can build Raspberry Pi projects more easily and save both time and cost.

• Input Voltage : 6V to 21Vdc converted to 5V, 3A via step-down DC/DC converter to power the Raspberry Pi
• VGA Output : HDMI to VGA converter supporting up to UXGA (1600×1200) and 1080p with 10-bit DAC
• Audio :
  • 3.5mm MIC in jack
  • 3.5mm Stereo Audio Jack
  • SPDIF Output
  • Audio IO connector (Microphone input and stereo audio amplifier 3.3Wx2)
  • Wireless:
  • WiFi (IEEE 802.11b/g/n) with external antenna
  • IR sensor (38KHz)
  • USB Storage: Self-powered USB hub with 3 ports
  • Real-time clock (RTC): Based on DS3231SN with included CR2032 battery
  • GPIO Control: 8-channel Darlington driver chip (ULN2803) allowing to control electronic circuits which require more current
• General :
  • Power output socket
  • Camera flex slot so camera can still be used with the expansion board attached
  • DIP switch to remove connection from RPi’s pin header
  • Directly connected on top of the Raspberry Pi using the board GPIO header pins
  • No wiring nor soldering is required
  • Duplicated the 40-pin header of the R-Pi in order to support existing expansion boards
  • Suitable for Raspberry Pi Model B+ and Raspberry Pi 2 Model B NEW!
  • Dimensions: 85 x 56mm (Same size as Raspberry Pi)

Note : When you power Raspberry Pi with the shield power resource, please don't power it again via the Micro-USB port, it will damage the board.

Contents List :

• 1 x X200 Raspberry Pi Expansion Board
• 1 x HDMI Adapter
• 1 x Adapter
• 1 x .4GHz WIFI Antenna
• 4 x Nylon Spacers (M3 x 20mm)
• 4 x Nylon Screws (M3 x 6mm)
