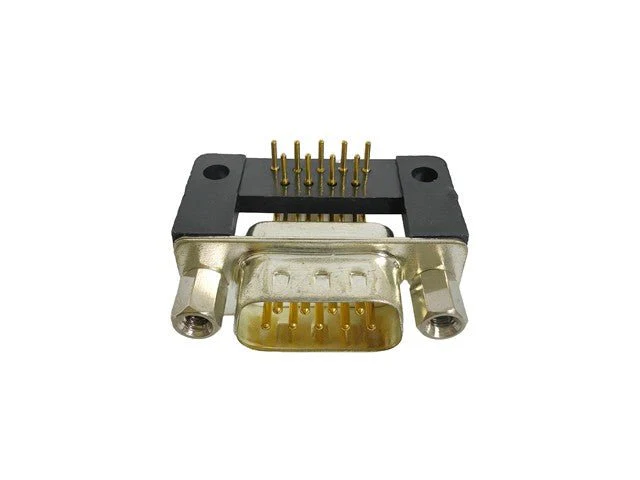

DEPM9P MOD
DSUB 9W Plug 90deg Boxed PLS/MTL SC
9W Plug 90deg Boxed DSUB
Specifications
- Series / Part Number: DEM9P / DEM-9P (053516-0012)
- Style / Gender: D-Sub Plug, Male Pins
- Positions / Rows: 9 positions, 2 rows
- Termination: Solder Cup
- Shell Material/Finish: Steel, yellow chromate on zinc
- Contact Material / Finish: Copper alloy, gold over nickel
- Insulator Material: Thermoplastic PCT, black, UL94 V-0
- Current Rating: 7.5 A maximum
- Voltage Withstanding: 1000 VAC (sea level)
- Contact Resistance: ≤ 7.5 mΩ
- Range: –55 °C to +125 °C
- Mating Cycles: \~200 (typical), \~500 (high-reliability)
- Salt Spray Resistance: \~20 hours
- Standards: Comparable to MIL-DTL-24308
- Typical Uses: Industrial, aerospace, defense, comms
Additional Information
| Device | DSUB |
| Type | 9W | Plug | 90deg | Boxed |
$0.33
Original: $1.10
-70%DEPM9P MOD—
$1.10
$0.33Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
DSUB 9W Plug 90deg Boxed PLS/MTL SC
9W Plug 90deg Boxed DSUB
Specifications
- Series / Part Number: DEM9P / DEM-9P (053516-0012)
- Style / Gender: D-Sub Plug, Male Pins
- Positions / Rows: 9 positions, 2 rows
- Termination: Solder Cup
- Shell Material/Finish: Steel, yellow chromate on zinc
- Contact Material / Finish: Copper alloy, gold over nickel
- Insulator Material: Thermoplastic PCT, black, UL94 V-0
- Current Rating: 7.5 A maximum
- Voltage Withstanding: 1000 VAC (sea level)
- Contact Resistance: ≤ 7.5 mΩ
- Range: –55 °C to +125 °C
- Mating Cycles: \~200 (typical), \~500 (high-reliability)
- Salt Spray Resistance: \~20 hours
- Standards: Comparable to MIL-DTL-24308
- Typical Uses: Industrial, aerospace, defense, comms
Additional Information
| Device | DSUB |
| Type | 9W | Plug | 90deg | Boxed |
