CPF5-6FV

5MM 300V 15A Plug In Terminal with 6 Pins and Screw Clamp

Overview

Features

Specification

 Electrical

  • Standard : UL
  • Rated voltage : 300V
  • Rated current : 15A
  • Wire range : 28-12AWG
  • Withstanding voltage : 4KV
Mechanical
  • Torque : 0.4Nm(3.5Lb-In.)
  • Ambient temperature : -40°C~+105°C
  • Strip length : 7mm

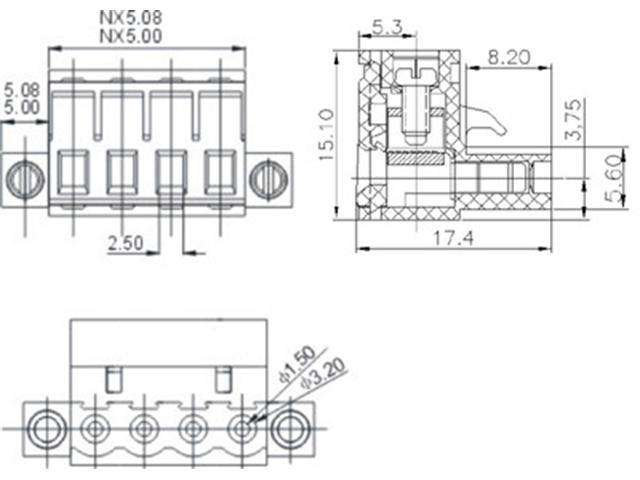

Dimensions
  • Pitch : 5.0mm, 5.08mm
  • Poles : 2P-22P
Material
  • Housing : PA66,UL94V-0
  • Screws : M2.5,steel,Cr3+ Zn plated
  • Contact : Phosphor bronze
  • Cage : Brass,Ni plated



Gender Female
No. of Pins 6
Size 5mm
Electrical Rating 300V 15A
Wire Range 28-12AWG
$0.55

Original: $1.84

-70%
CPF5-6FV—

$1.84

$0.55
