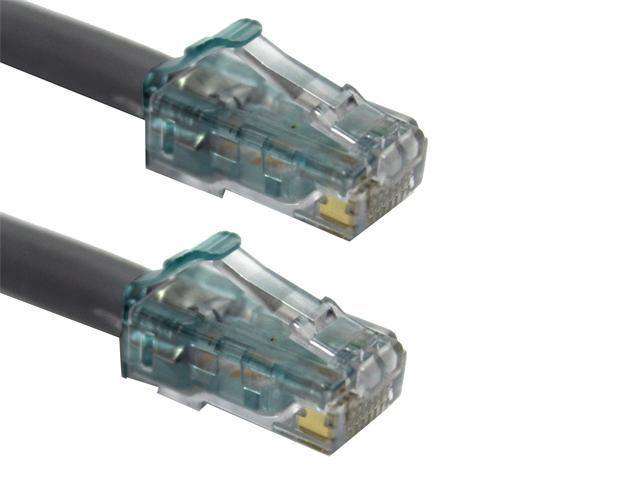

The GigaSPEED XL GS8E modular patch cord family supports the high performance system level requirements built into the GigaSPEED XL cabling solutions. The GigaSPEED XL GS8E family of modular patch cords is available in a wide range of cord types, lengths, colors and configurations.



• Low Smoke Zero Halogen
• U/UTP Modular Patch Cord
• GS8E Stranded LSZH Cordage
• RJ45-RJ45



Electrical Specifications

• ANSI/TIA Category : 6
• DC Resistance, maximum : 0.30 ohm
• Safety Voltage Rating : 300 V

Environmental Specifications

• Environmental Space : Low Smoke Zero Halogen (LSZH)
• Flammability Rating : UL 94 V-0
• Operating Temperature : -10°C to 60°C

General Specifications

• Cable Type : U/UTP (unshielded)
• Interface, connector A : RJ45 plug
• Interface, connector B : RJ45 plug
• Jacket Color : Lilac
• Interface Feature, connector A : Standard
• Interface Feature, connector B : Standard
• Package, quantity : 1
• Pairs, quantity : 4

Mechanical Specifications

• Conductor Type : Stranded
• Material Type : Copper alloy | Polycarbonate
• Outlet/Module Contact Plating : Precious metals
• Plug Insertion Life, minimum : 750 times
• Plug Retention Force, minimum : 133 N | 30 lbf
• Wiring : T568B

Regulatory Compliance/Certifications

• Agency : Classification
• RoHS 2011/65/EU : Compliant
• ISO 9001:2008 : Designed, manufactured and/or distributed under this quality management system
