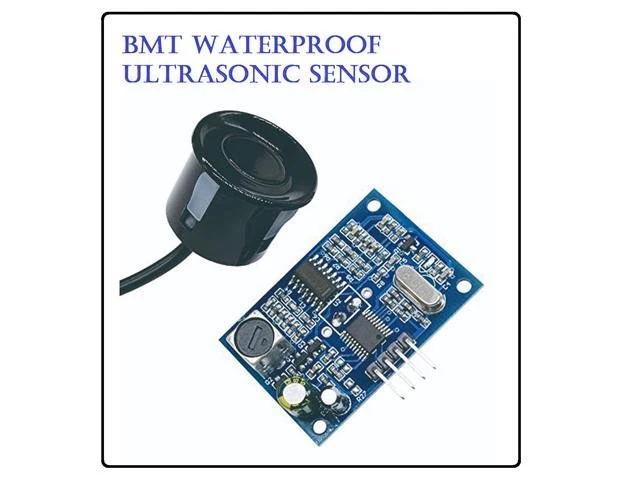

BMT WATERPROOF ULTRASONIC SENSOR
Integrated Waterproof, Ultrasonic Module Distance Measuring Transducer Sensor JSN-SR04T, Operating Voltage: DC 5V, Working Current 30MA
Integrated Waterproof Ultrasonic Module
Features
- Operating Voltage: DC 5V
- Quiescent Current: 5mA
- Total Current Work: 30Ma
- Acoustic Emission Frequency: 40Khz
- Farthest Distance: 4.5m
- Blind: 25cm
- Wiring: + 5V (Positive Power Supply)
- Trig (Control Side) RX
- Echo (The Receiver) TX
- Gnd (Negative)
- Resolution: About 0.5cm
- Angle: Less Than 50 Degrees
- Working Temperature: -10 ~ 70 Celsuis
- Storage Temperature: -20 ~ 80 Celsuis
Additional Information
| Device | Module |
| Type | Integrated | Waterproof | Ultrasonic |
$1.38
Original: $4.60
-70%BMT WATERPROOF ULTRASONIC SENSOR—
$4.60
$1.38Product Information
