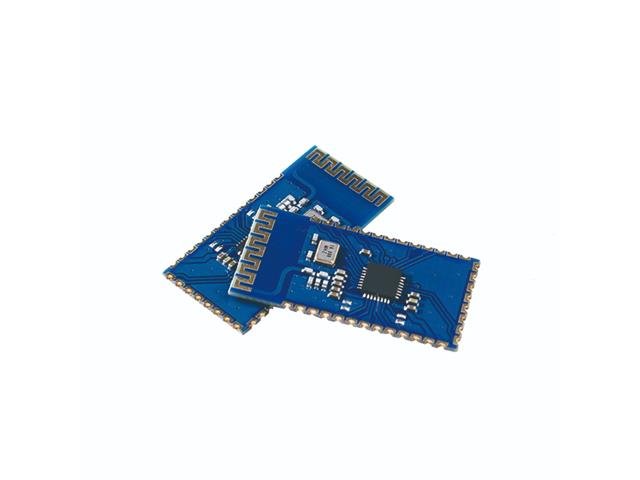

BMT CSR BLUETOOTH MODULE V2.1
BT04-A Bluetooth Serial Port Module
BT04-A Bluetooth Serial Port Module
Overview
This module supports UART interface and supports SP Bluetooth serial port protocol, which has low cost and small size.
Low power consumption, high sensitivity of transmission and reception, and only a small number of peripheral components can achieve its powerful functions
Features
- Bluetooth V2.1+EDR
- Bluetooth Class2
- Built-in PCB RF antenna
- Support UART interface
- 3.3V power supply
Specifications
- Operating Frequency:2.4GHZ
- Receive Electric:8.5mA
- Supply Voltage:3.0-3.6V
- Operation Temperature:-25ā-75ā
- Output Powerļ¼4dBm(Maximum)
Additional Information
| Device | Module |
| Type | BT04-A | Bluetooth | Serial Port |
