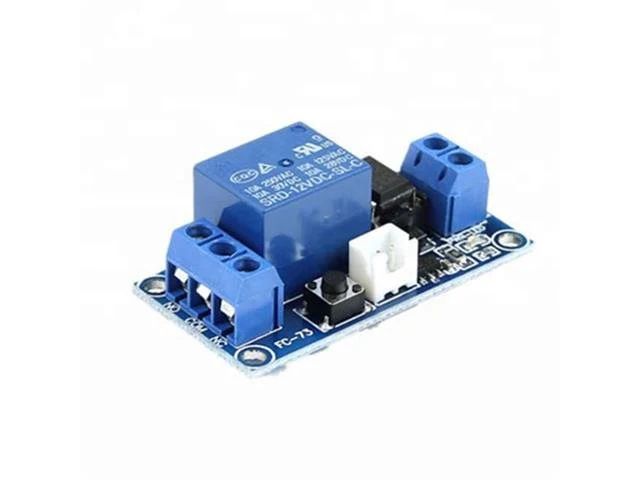

BDD LATCHIN RELAY BOARD 1CH 12V
12V 1 Channel Latching Relay
Overview
A latching relay is different from a regular relay because it retains its state (either on or off) without needing continuous power to stay in that state.

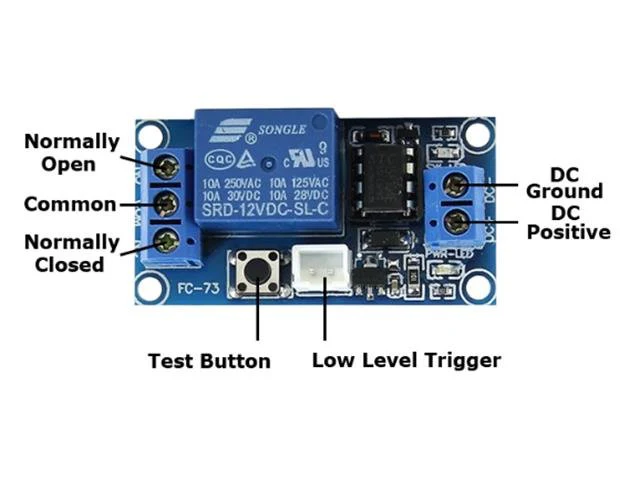

The module's relay is single-pole, double throw and can handle 250VAC at 10A or 30VDC at 10A. A button is fitted to the module for easy switching access, or you can use the included cable - simply short the two wires to switch the relay. The module's control circuitry requires 12V DC.
Features
- Working Voltage: DC 12V
- Working Current: 70mA
- Standby Current: 1uA
- Load Current: AC 250V / 10A, DC 30V / 10A
- Trigger Mode: Low pulse trigger
Additional Information
| Device | Relay |
| Type | 12V | 1 Channel | Latching |
