BDD IEC C14M SNAP-IN W/DPST RED

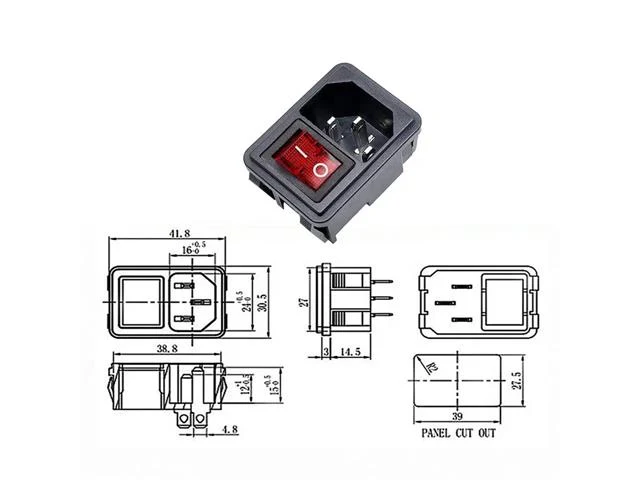

IEC C14M Inlet Snap-in with DPST 10A,250VAC Switch with Red Light. (Panel Cut Out = 39 x 27.5mm)
Inlet Snap-in with DPST 10A,250VAC Switch
Specifications
- Conductor: Brass, nickel plated
- Insulator: Nylon
- Insulation resistance: ≥100MΩ
- Contact resistance: ≤50MΩ
- Rated voltage: 250VAC,
- Rated current: 10A (3C, TUV, CE)
- Terminal strength: ≥80N
- Working life: ≥10000 times
- Dielectric strength: 2000V AC/min
- Hole Size: 27.2*39mm"
Additional Information
| Device | Inlet Snap-in |
| Type | with DPST 10A,250VAC Switch |
