BDD ESP8266 RELAY 2CH 5/28V 30A
Two Channel ESP8266 30A Relay WiFi Module Board. Based on the ESP-12F WiFi Module. Has A 30A Relay. Power Supply DC 7 - 28V OR 5V
ESP8266 30A Relay WiFi Module Board
Features

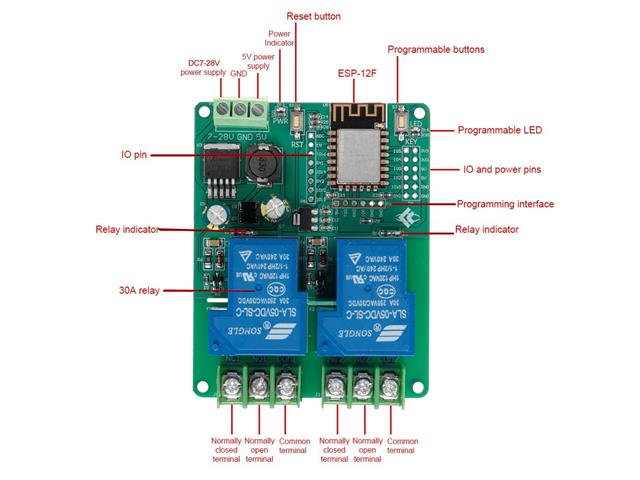

A dual channel relay WiFi module based on the ESP-12F WiFi module and two 30A relays
- Mature and stable ESP-12F WiFi module on board, 4MB flash.
- The I/O port of the WiFi module and the UART program transfer port are all driven out. It is convenient for secondary development.
- Power supply DC7-28V / 5V.
- Onboard is a WiFi module RST reset button and a programmable button.
- ESP-12F supports the use of Eclipse/IDE and other development tools and provides reference programs in development environment
- On board are two 5V/30A relays which are suitable for controlling loads within AC 250V/DC30V voltage range.
- Onboard a power indicator, a relay indicator. The ESP-12F comes with a programmable LED.
- Board size: 83*68mm
Additional Information
| Device | WiFi Module Board |
| Type | ESP8266 | 30A | Relay | 2CH |
$3.99
Original: $13.30
-70%BDD ESP8266 RELAY 2CH 5/28V 30A—
$13.30
$3.99Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Two Channel ESP8266 30A Relay WiFi Module Board. Based on the ESP-12F WiFi Module. Has A 30A Relay. Power Supply DC 7 - 28V OR 5V
ESP8266 30A Relay WiFi Module Board
Features
A dual channel relay WiFi module based on the ESP-12F WiFi module and two 30A relays
- Mature and stable ESP-12F WiFi module on board, 4MB flash.
- The I/O port of the WiFi module and the UART program transfer port are all driven out. It is convenient for secondary development.
- Power supply DC7-28V / 5V.
- Onboard is a WiFi module RST reset button and a programmable button.
- ESP-12F supports the use of Eclipse/IDE and other development tools and provides reference programs in development environment
- On board are two 5V/30A relays which are suitable for controlling loads within AC 250V/DC30V voltage range.
- Onboard a power indicator, a relay indicator. The ESP-12F comes with a programmable LED.
- Board size: 83*68mm
Additional Information
| Device | WiFi Module Board |
| Type | ESP8266 | 30A | Relay | 2CH |
