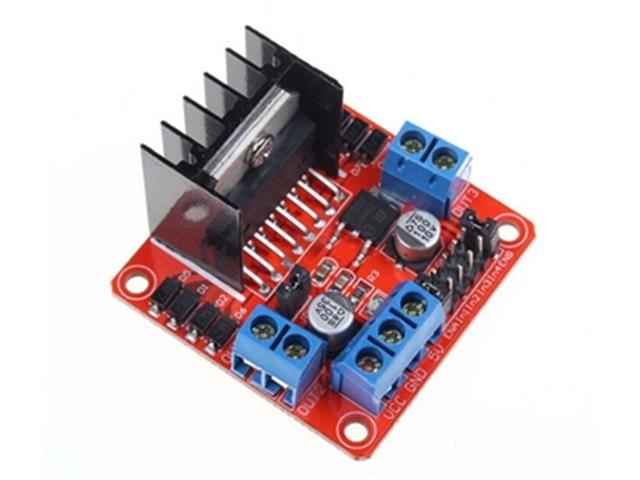

The L298N driver module, using ST's L298N chip can directly drive two 7-24 DC motor, and provides a 5V output interface can 5V single-chip circuitry to supply, support 3.3VMCU control, you can easily control the DC motor speed and direction, you can also control the 2-phase stepper motor, smart car essential.

Using L298N made by ST company as the control chip,the module has such characteristics as strong driving ability, low calorific value and strong anti-interference ability.

• Driver Chip: L298N DUAL H-Bridge Driver Chip
• Drive Section Terminal Supply Area VMS: +5 V ~+35 V
• Drive Section Peak Current IO: 2A / Bridge
• Logical Part Of The Terminal Supply Area VSS :4.5-5.5V
• Logical Part Of The Operating Current Range: 0 ~ 36MA
• Control Signal Input Voltage Range: 4.5-5.5V HIGH LOW 0V
• Maximum Power Consumption: 20W
• Storage Temperature: -25 °C ~ +130 °C
• Driver Board Size: 55mm x 60mm x 30mm
