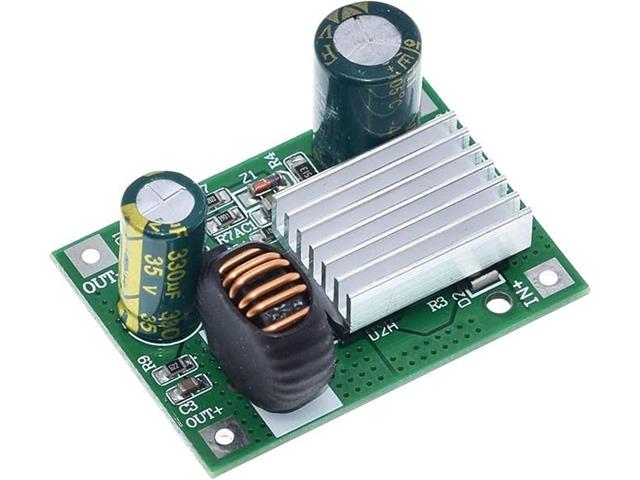

BDD DC/DC BUCK MODULE 12V 3A
DC/DC Buck Module. Input 16 to 120V DC . Output 12V 3A DC
DC/DC Buck Module
Specifications
- Working Voltage:DC 16V-120V (Keep input at least 4.0V higher than output)
- Output Voltage:DC 12V
- Output Current:3A
- Output Power:36W
- Conversion efficiency:About 96%( The smaller the differential voltage, the higher the efficiency)
- Working frequency:140KHz
- Soft Starter:Yes(Failure at high power load)
- Over temperature protection:Yes
- Overvoltage protection:Yes
- Short circuit protection:Yes
- Working Temperature range:-40℃~85℃
- Working Humidity range:0%-95%RH
- Size:42*30*20mm"
Downloads
Additional Information
| Device | Buck Module |
| Type | DC/DC |
