B26-3VDC

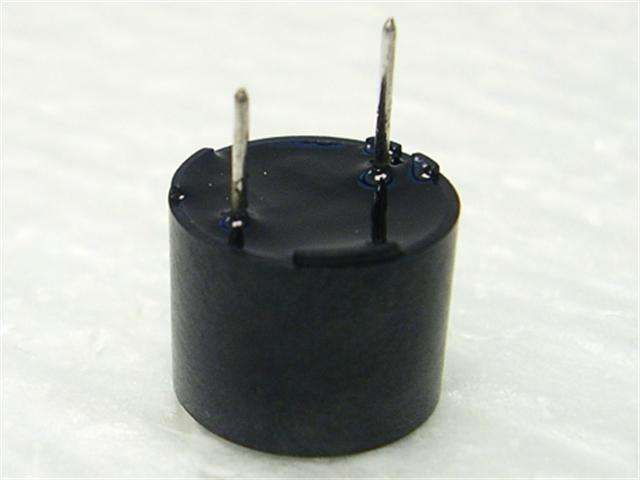

Magnetic Buzzer Round • Blue • 3VDC • 30mA • 80dB / 10cm • Pin • 2300Hz • φ12mm x 9.5mm • Single Tone
Overview
Features
Specification
| Shape | Round |
| Colour | Blue |
| Voltage Rating | 3V |
| Voltage Type | DC |
| Current Rating | 30mA |
| Sound Output | 80dB @ 10cm |
| Termination | Pin |
| Frequency | 2300Hz |
| Face Diameter | 12mm |
| Height | 9.5mm |
| Tone Nature | Single |
Downloads
$0.23
Original: $0.76
-70%B26-3VDC—
$0.76
$0.23Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Magnetic Buzzer Round • Blue • 3VDC • 30mA • 80dB / 10cm • Pin • 2300Hz • φ12mm x 9.5mm • Single Tone
Overview
Features
Specification
| Shape | Round |
| Colour | Blue |
| Voltage Rating | 3V |
| Voltage Type | DC |
| Current Rating | 30mA |
| Sound Output | 80dB @ 10cm |
| Termination | Pin |
| Frequency | 2300Hz |
| Face Diameter | 12mm |
| Height | 9.5mm |
| Tone Nature | Single |
