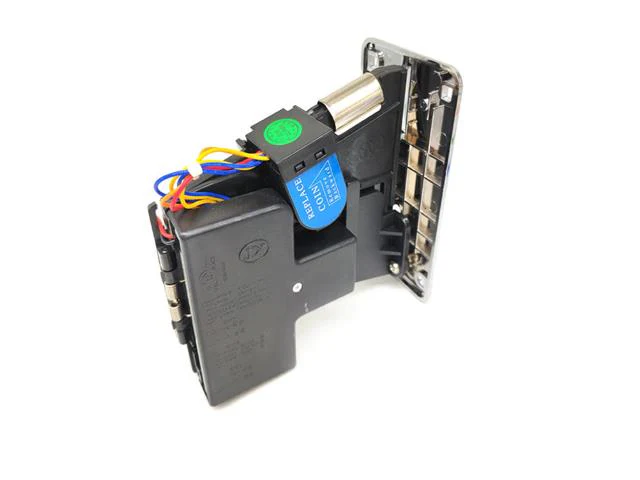

• CPU Electronic coin acceptor, Drop Inserting Type.
• Capable for accepting all worldwide Coins and Tokens.
• Select coin by Diameter, Thickness and Metal Content.
• CPU anti-string programs presenting against fraud.
• Adjustable VR tunning for sensitivity of coin acceptance.
• Allow to connect to Counter (Meter).
  • Voltage: DC+12V
  • Coin Diameter: 22mm~28mm
  • Coin thickness: 1.7mm~2.2mm

USER GUIDE:

• Replace yellow plastic token to the correct coin as wish to accept in sampling clamp.
• Adjust entry slot opening to your coin size by loosening screw on the back of metal panel for blocking bigger invalid coin from inserting
• Turn the screw on front lid in clockwise direction for ditching “thinner coin” through the slot of lid if necessary
• Switch to Normal Open (N.O.) or Normal close (N.C) for signal output of coin validation upon Host requested.
• 3 Triggering TIMER SWITCH of Pulse Duration, ·
  • Long duration of Pulse: 100ms
  • Common duration of Pulse: 50ms
  • Short duration of Pulse :30ms
• VR tuning for tolerance of coin acceptance, turn clockwise for slack and anti-clockwise for precise acceptance.
• Shift sensitivity switch of coin acceptance downward to “special” to extend the range of discriminated ratio for twin metal coins or the coins in big tolerance.

Applications:

•  Wireless PC peripherals
•  Coin kiosk
•  Car washing machine
•  TV
•  Massage chair
•  Cloth dryer
•  Cyber coffee
•  Laundromat
•  Laundry
•  Computer
•  Amusement machine

1. Datasheet - ALX SINGLE COIN ACCEPTOR 22-28MM
