99-5125-19-07

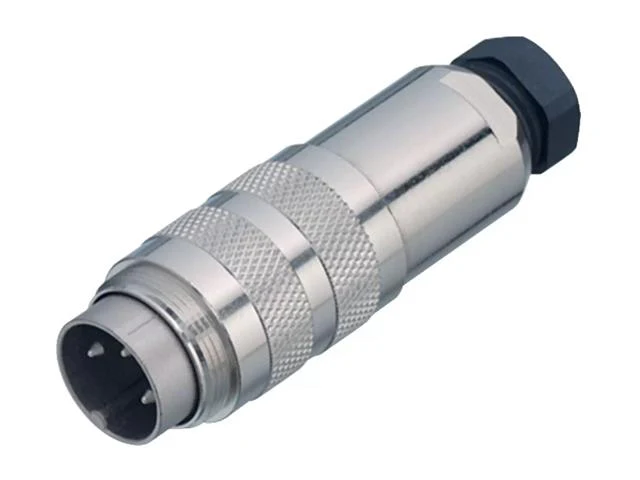

Product image 1

99-5125-19-07

Circular Connector M16 Shield Cable Male Straight 7 POL DIN Gold plated contacts Screw lock 6mm Cable entry IP67

Circular Connector Male Straight

Specifications



Part no. 99 5125 19 07
Connector design Male cable connector
Type standard DIN EN 61076-2-106
Version Connector pin straight
Connector locking system screw
Termination solder
Degree of protection IP67
Cross-sectional area max. 0.75 mm² / AWG 18
Cable outlet 4.0-6.0 mm
Temperature range from/to -30 °C / 95 °C
Mechanical operation > 500 Mating cycles
Weight (g) 49.74

Rated voltage 125 V
Rated impulse voltage 800 V
Rated current 5.0 A
Insulation resistance ≥ 1010 Ω
Pollution degree 1
Overvoltage category I
Insulating material group III
EMC compliance shieldable
Shield connection Shielding ring

Additional Information

Device Connector
Type Male | Gold Plated
$35.00
99-5125-19-07—
$35.00

Product Information

Shipping & Returns

Description

Circular Connector M16 Shield Cable Male Straight 7 POL DIN Gold plated contacts Screw lock 6mm Cable entry IP67

Circular Connector Male Straight

Specifications



Part no. 99 5125 19 07
Connector design Male cable connector
Type standard DIN EN 61076-2-106
Version Connector pin straight
Connector locking system screw
Termination solder
Degree of protection IP67
Cross-sectional area max. 0.75 mm² / AWG 18
Cable outlet 4.0-6.0 mm
Temperature range from/to -30 °C / 95 °C
Mechanical operation > 500 Mating cycles
Weight (g) 49.74

Rated voltage 125 V
Rated impulse voltage 800 V
Rated current 5.0 A
Insulation resistance ≥ 1010 Ω
Pollution degree 1
Overvoltage category I
Insulating material group III
EMC compliance shieldable
Shield connection Shielding ring

Additional Information

Device Connector
Type Male | Gold Plated
