99-3721-810-04

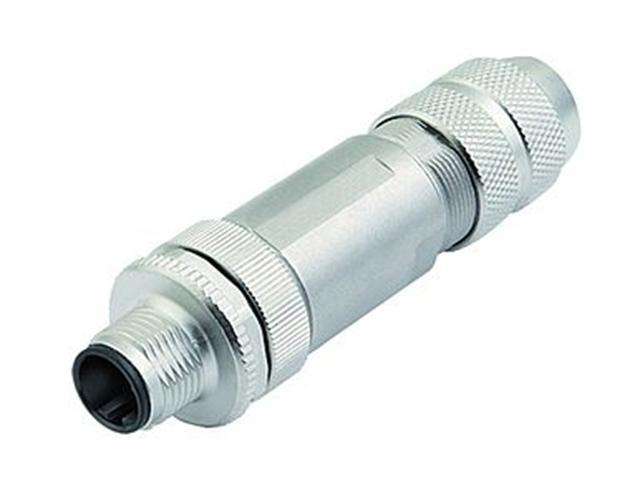

Circular Connector M12 D COD Cable Male Strip . 4 Pole Crimp Contacts (Sold Separate) 8mm Cable Entry Shieldable CAT5 IP67
Overview
Features
Specification
- Ordering number : 99 3721 810 04
- Connector locking system : bolted
- Termination : crimp
- Wire gauge (mm) : siehe Crimpkontakte unter Zubehör
- Cable outlet : 5 – 8 mm
- Degree of protection : IP67
- Mechanical operation : > 100 Mating cycles
- Upper temperature : 85 °C
- Lower temperature : -40 °C
- Rated voltage : 250 V
- Rated impulse voltage : 2500 V
- Pollution degree : 3
- Overvoltage category : II
- Material group : III
- Rated current (40°C) : 4 A
- Volume resistivity : ≤ 3 mΩ
- Material of contact : CuZn (Messing)
- Contact plating : Au (gold)
- Material of contact body : PA
Downloads
$4.03
Original: $13.43
-70%99-3721-810-04—
$13.43
$4.03Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Circular Connector M12 D COD Cable Male Strip . 4 Pole Crimp Contacts (Sold Separate) 8mm Cable Entry Shieldable CAT5 IP67
Overview
Features
Specification
- Ordering number : 99 3721 810 04
- Connector locking system : bolted
- Termination : crimp
- Wire gauge (mm) : siehe Crimpkontakte unter Zubehör
- Cable outlet : 5 – 8 mm
- Degree of protection : IP67
- Mechanical operation : > 100 Mating cycles
- Upper temperature : 85 °C
- Lower temperature : -40 °C
- Rated voltage : 250 V
- Rated impulse voltage : 2500 V
- Pollution degree : 3
- Overvoltage category : II
- Material group : III
- Rated current (40°C) : 4 A
- Volume resistivity : ≤ 3 mΩ
- Material of contact : CuZn (Messing)
- Contact plating : Au (gold)
- Material of contact body : PA
