99-3383-00-04

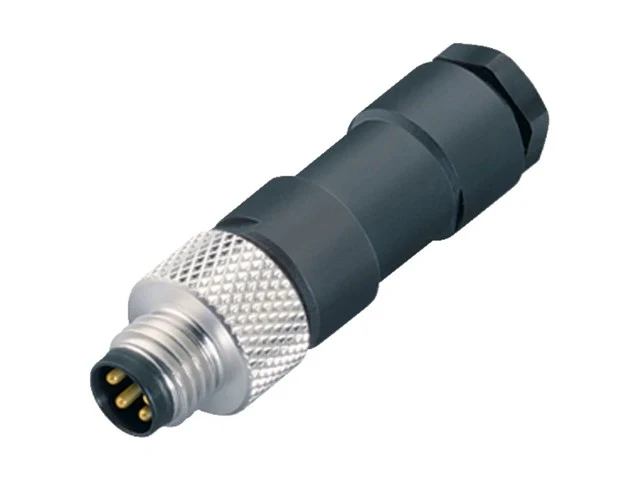

Circular Connector M8 Cable Male Straight. 4 Pole Sold Terminal. 5mm Max. Cable Entry IP67
M8 Cable Male Straight Circular Connector
Specifications
| Connector design | Male cable connector |
| Type standard | DIN EN 61076-2-104 |
| Version | Connector pin straight |
| Connector locking system | screw |
| Termination | solder |
| Degree of protection | IP67 |
| Connection cross-section | 0.25 mm² / AWG 24 |
| Cable outlet | 3.5-5.0 mm |
| Temperature range from/to | -40 °C / 85 °C |
| Mechanical operation | > 100 Mating cycles |
| Weight (g) | 10.36 |
| Customs tariff number | 85369010 |
| Country of Origin | DE |
Electrical parameters
| Rated voltage | 60 V (UL 30 V) |
| Rated impulse voltage | 1500 V |
| Rated current | 4.0 A |
| Pollution degree | 3 |
| Overvoltage category | III |
| Insulating material group | III |
| EMC compliance | unshielded |
Material
| Housing material | PA |
| Contact body material | PA |
| Contact material | CuZn (brass) |
| Contact plating | Au (gold) |
| Locking material | CuZn (brass) |
| REACH SVHC | CAS 7439-92-1 (Lead) |
Downloads
Additional Information
| Device | Connector |
| Type | M8 Cable | Male | Straight Circular |
