99-3360-100-03

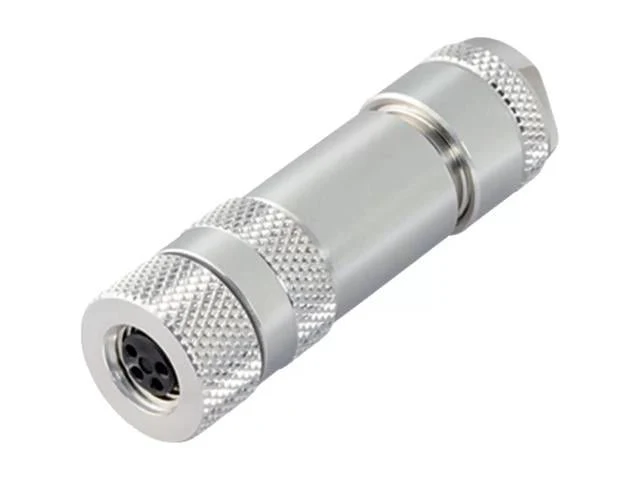

Circular connector M8 Cable female straight, 3 Pole screw lock screw term 5,0mm Cable entry shield 4A 30V IP67
Circular connector M8 Cable female straight
Specifications
| Part no. | 99 3360 100 03 |
| Connector design | Female cable connector |
| Type standard | DIN EN 61076-2-104 |
| Version | Connector socket straight |
| Connector locking system | screw |
| Termination | screw clamp |
| Degree of protection | IP67 |
| Cross-sectional area | 0.14-0.50 mm² / AWG 26-20 |
| Cable outlet | 4.0-5.5 mm |
| Temperature range from/to | -40 °C / 85 °C |
| Mechanical operation | > 100 Mating cycles |
| Weight (g) | 27.83 |
| Rated voltage | 30 V |
| Rated impulse voltage | 1500 V |
| Rated current | 4.0 A |
| Pollution degree | 3 |
| Overvoltage category | III |
| Insulating material group | II |
| EMC compliance | shieldable |
| Shield connection | Iris type spring |
Downloads
Additional Information
| Device | Connector |
| Type | Female |
